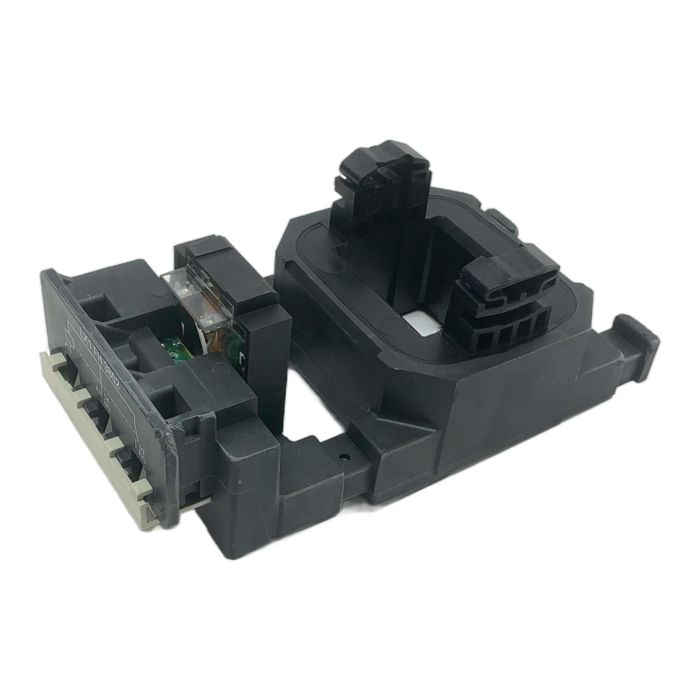

Telemecanique Contactor Coil 380/415V LX1 FH3802

Description

The LX1 FH3802 is a high-quality replacement coil manufactured by Telemecanique (now Schneider Electric) for their robust TeSys F series of contactors. This component is crucial for the electromagnetic actuation of the contactor, enabling the switching of high-power electrical circuits. Rated for 380/415V AC across a wide frequency of 40-400Hz, this coil is a durable solution for maintenance and repair of legacy industrial control systems.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: LX1 FH3802
• Part Number: 055337
• Product Type: Contactor Coil
• Control Circuit Voltage: 380/415V AC
• Frequency: 40 to 400Hz
• Compatibility: TeSys F Series Contactors

Label Info

• Telemecanique
• Coil / Bobine / Spule
• 380/415V 40 a 400Hz
• LX1 FH3802
• 055337

Application

This coil is specifically designed for use in industrial environments for controlling motors, heaters, lighting, and other high-current loads. It is the ideal spare part for service and maintenance of machinery and control cabinets that utilize the Telemecanique LC1-F contactor family.

Country of Origin

Made in France.

CO2 Impact

Choosing this surplus component prevents the emission of approximately 12.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the carbon captured by 0.6 trees in a year.

Availability

This item is an obsolete, new-old-stock (NOS) product. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

This coil is specifically designed for the older Telemecanique and Schneider Electric TeSys F range of contactors, such as the LC1-F series. It is not compatible with newer series like TeSys D, K, or Giga.

Yes, absolutely. The wide frequency range from 40 to 400Hz makes it very versatile. It will function perfectly on standard European (50Hz) and North American (60Hz) power grids, provided the voltage is within the 380-415V range.

This is an AC coil, as indicated by the voltage rating (380/415V) and frequency specification (40-400Hz). Do not attempt to use it with a DC power source, as this will damage the coil.
