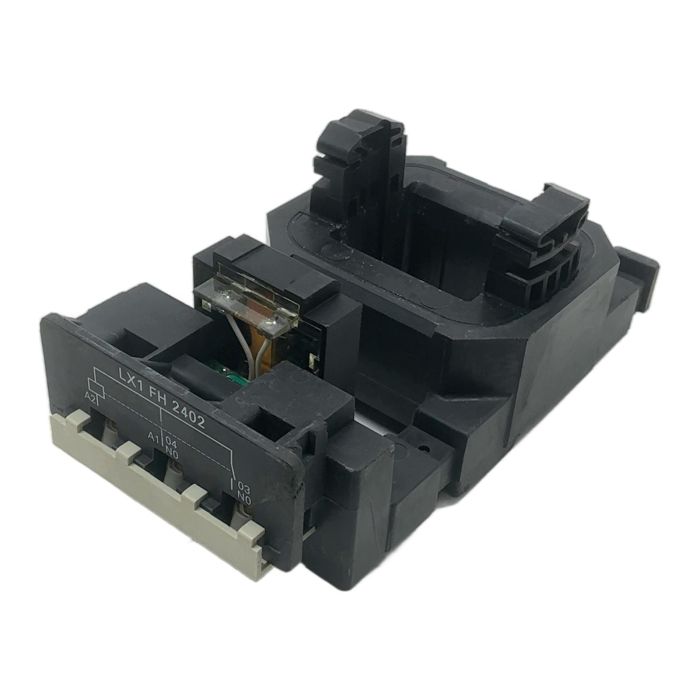

Telemecanique LX1 FH2402 Contactor Coil

Description

The Telemecanique LX1 FH2402 is a high-quality replacement coil designed for the TeSys F range of contactors. This component is essential for the proper electromagnetic operation of contactors, ensuring reliable switching of motor and power circuits. It operates on a versatile voltage range of 240-265V AC and a wide frequency of 40 to 400 Hz.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Type: LX1 FH2402
• Part Number: 055336
• Product Type: Contactor Coil
• Control Circuit Voltage: 240-265V AC
• Operating Frequency: 40-400 Hz
• Compatibility: Suitable for LC1F115 to LC1F225 contactors

Label Info

• Coil / Bobine / Spule
• 240/265V 40 a 400Hz
• LX1 FH2402
• 055336

Application

This coil is used as a spare part for repairing or maintaining TeSys F contactors in various industrial settings, including motor control centers, HVAC systems, and manufacturing machinery.

Country of Origin

Made in France.

CO2 Impact

By choosing this pre-owned component, you are avoiding the production of a new one, which saves an estimated 10.0 kg of CO2. This is comparable to the emissions of driving a car for 50 kilometers.

Availability

This item is an obsolete, New Old Stock (NOS) product. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

This coil is designed for TeSys F contactors in the range of LC1F115 to LC1F225. To confirm compatibility, check the data sheet of your specific contactor model or inspect the old coil for a matching part number. The physical dimensions and mounting points should align perfectly.

Common symptoms of a failing coil include the contactor not pulling in (closing the contacts) when voltage is applied, a humming or buzzing sound louder than usual, or intermittent operation. Overheating of the coil body is also a clear sign of an internal fault.

Yes, absolutely. The wide frequency range of 40-400 Hz makes this coil suitable for standard 50Hz and 60Hz power systems, as well as specialized applications like those found in aviation or military equipment. The coil will function correctly within this entire range.
