TeSys - LR2D - Thermal overload relay - 63-80A - Class 20: Specifications, Head, range, TeSys, product name, TeSys LRD, TeSys Deca, product or component type, Differential thermal overload relay, device short name, LR2D, relay application, Motor protection, product compatibility, LC1D95, LC1D80, networktype, ACDC, _, class overload shutdown, Class 20 conforming to IEC 60947-4-1, thermal protection setting range, 63…80 A, Ui rated insulation voltage, Power circuit: 600 V conforming to CSA, Power circuit: 600 V conforming to UL, Power circuit: 690 V conforming to IEC 60947-4-1, Complementary, network frequency, 0...400 Hz, mounting bracket, Plate, with specific accessories, Rail, with specific accessories, Under switch, switch-off limit, 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1, composition of auxiliary contact, 1 NO + 1 NC, Ith conventional thermal flow in free air, 5 A for signaling circuit, allowable current, 0.72 A at 500 V AC-15 for signaling circuit, 0.06 A at 440 V DC-13 for signaling circuit, Your assigned operating voltage, 1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1, associated fuse rating, 4 A gG for signaling circuit, 4 A BS for signaling circuit, Uimp nom. shock wave voltage, 6 kV, sensitivity to absence phase, Cut-off current 130% of Ir on 2-phase, last at 0, control type, Red push button: stop, Blue push button: reset, temperature compensation, -20…60 °C, connections - terminals, Power circuit: screw clamp connections 1 cable(s) 4…35 mm² flexible without cable end, Power circuit: screw clamp connections 1 cable(s) 4…35 mm² flexible with, Power circuit: screw clamp connections 1 cable(s) 4…35 mm² solid without cable end, Control circuit: screw clamp connections 2 cable(s) 1…2.5 mm² flexible without cable end, Control circuit: screw clamp connections 2 cable(s) 1…2.5 mm² flexible with, Control circuit: screw clamp connections 2 cable(s) 1…2.5 mm² solid without cable end, tightening torque, Control circuit: 1.7 Nm - on screw clamp connections, Power circuit: 9 Nm - on screw clamp connections, height, 100mm, width, 75mm, depth, 121mm, net weight, 0.535kg, Environment, weather resistance, Conforming to IACS E10, IP degree of protection, IP20 conforming to IEC 60529, ambient air temperature for operation, -20…60 °C without underload conforming to IEC 60947-4-1, ambient air temperature for storage, -60…70 °C, flame retardancy, V1 conforming to UL 94, mechanical strength, Vibration: 6 gn conforming to IEC 60068-2-6, Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7, dielectric strength, 2.2 kV at 50 Hz conforming to IEC 60947-1, standards, EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, product certifications, IEC, UL, CSA, EAC, DNV-GL, LROS (Lloyds register of shipping), UKCA

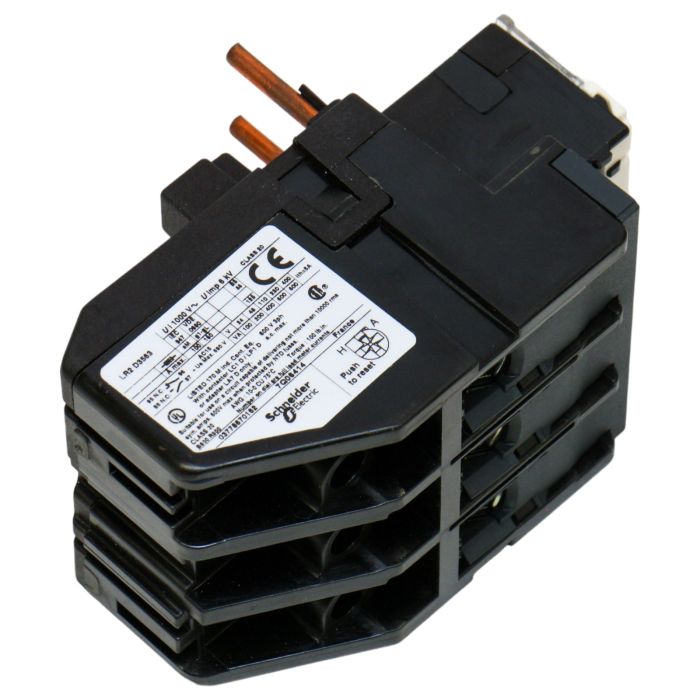

• Product Name: Telemecanique TeSys LR2D Thermal Overload Relay
• Product or Component Type: TeSys Deca Differential Thermal Overload Relay
• Device Short Name: LR2D
• Relay Application: Motor Protection
• Product Compatibility: LC1D95, LC1D80
• Network Type: ACDC
• Class Overload Shutdown: Class 20 conforming to IEC 60947-4-1
• Thermal Protection Setting Range: 63…80 A
• Ui Rated Insulation Voltage:
  • Power Circuit: 600 V conforming to CSA
  • Power Circuit: 600 V conforming to UL
  • Power Circuit: 690 V conforming to IEC 60947-4-1
• Network Frequency: 0...400 Hz
• Mounting Bracket:
  • Plate with specific accessories
  • Rail with specific accessories
  • Under switch switch-off limit: 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
• Composition of Auxiliary Contact: 1 NO + 1 NC
• Ith Conventional Thermal Flow in Free Air:
  • 5 A for Signaling Circuit
• Allowable Current:
  • 0.72 A at 500 V AC-15 for Signaling Circuit
  • 0.06 A at 440 V DC-13 for Signaling Circuit
• Your Assigned Operating Voltage: 1000 V AC 0...400 Hz for Power Circuit conforming to IEC 60947-4-1
• Associated Fuse Rating: 4 A gG for Signaling Circuit, 4 A BS for Signaling Circuit
• Uimp Nom. Shock Wave Voltage: 6 kV
• Sensitivity to Absence Phase: Cut-off current 130% of Ir on 2-phase, last at 0
• Control Type: Red Push Button - Stop, Blue Push Button - Reset
• Temperature Compensation: -20…60 °C
• Connections - Terminals:
  • Power Circuit: Screw Clamp Connections 1 Cable(s) 4…35 mm² Flexible without Cable End
  • Power Circuit: Screw Clamp Connections 1 Cable(s) 4…35 mm² Flexible with Cable End
  • Power Circuit: Screw Clamp Connections 1 Cable(s) 4…35 mm² Solid without Cable End
  • Control Circuit: Screw Clamp Connections 2 Cable(s) 1…2.5 mm² Flexible without Cable End
  • Control Circuit: Screw Clamp Connections 2 Cable(s) 1…2.5 mm² Flexible with Cable End
  • Control Circuit: Screw Clamp Connections 2 Cable(s) 1…2.5 mm² Solid without Cable End
• Tightening Torque:
  • Control Circuit: 1.7 Nm on Screw Clamp Connections
  • Power Circuit: 9 Nm on Screw Clamp Connections
• Height: 100mm
• Width: 75mm
• Depth: 121mm
• Net Weight: 0.535kg
• Environment:
  • Weather Resistance: Conforming to IACS E10
  • IP Degree of Protection: IP20 conforming to IEC 60529
  • Ambient Air Temperature for Operation: -20…60 °C without underload conforming to IEC 60947-4-1
  • Ambient Air Temperature for Storage: -60…70 °C
  • Flame Retardancy: V1 conforming to UL 94
  • Mechanical Strength:
    • Vibration: 6 gn conforming to IEC 60068-2-6
    • Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
  • Dielectric Strength: 2.2 kV at 50 Hz conforming to IEC 60947-1
  • Standards: EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1
  • Product Certifications: IEC, UL, CSA, EAC, DNV-GL, LROS (Lloyds Register of Shipping), UKCA
