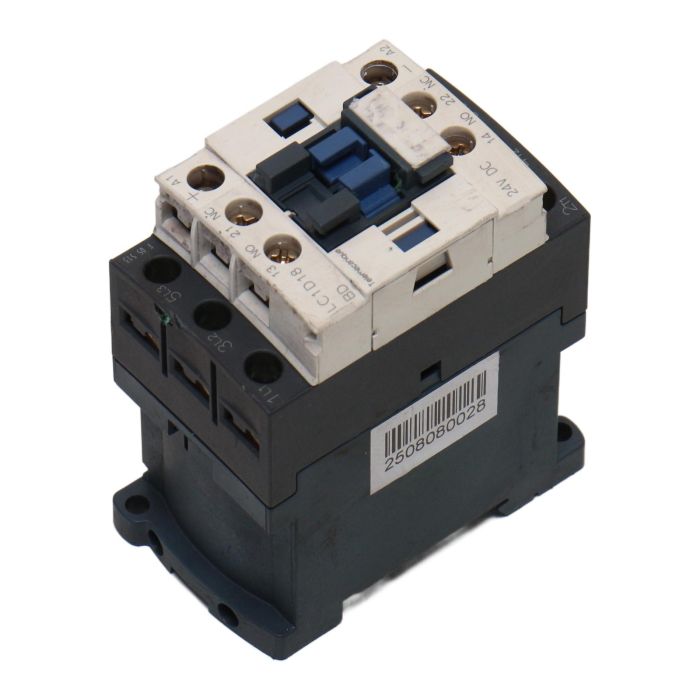

LC1D18BD + LAD4TBDL Telemecanique Contactor with Bi-Directional Limiting Diode

Product Description

High-quality Telemecanique contactor and bi-directional limiting diode suitable for electrical power transmission applications. The contactor is designed for AC-3/3e applications up to 440V 18A with a 24V DC coil and screw clamp terminals. The bi-directional limiting diode ensures efficient operation.

Product Specifications

Contactor Model: LC1D18BD
- Current Rating: 18A
- Coil Voltage: 24V DC
- Terminals: Screw Clamp
- Voltage Rating: <=440V
- Bi-Directional Limiting Diode: LAD4TBDL
- Cont. Current: 32A
- Maximum Voltage: 630V
- Auxiliary Contacts: A600-P600

Product Label Info

Model Code / Product Markings: LC1D18BD + LAD4TBDL

Contactor Markings: LC1D18BD, 32A, Uira 630V, Ump 6kV, V 230 400 500-690, AC3 KW 4 7.5 10, JIS, V 200-220 440, C8201-4-1 kW 3.7, A013250, WOM, 117, 3.7 7.5, IEC/EN BS, 60847 EN60947, VDE NFC, 0660 EN60847

Diode Markings: LAD4TBDL, 5 - 24V, 802546°, W, x1, x2 8 1.7, 1...4 x1, 1...2,52, 1.5.., 1.5...6 x2, 1..6 x1, 1_4x2, LISTED 170M, LIND CONT EQ, 600V a.c. max

Application

These components are typically used in electrical power transmission systems and automation equipment.

Country of Origin

This product is manufactured in France.

Method of Application

Follow manufacturer guidelines for proper installation and integration into your system.

Safety Instructions

Handle with care and follow safety protocols for electrical components.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Schneider Electric

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Telemecanique
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the LC1D18BD + LAD4TBDL used for?

This part is typically used in electrical power transmission systems, such as industrial automation applications. It handles contactor switching and diode protection functions.

What are the key advantages of LC1D18BD + LAD4TBDL?

These components offer reliable performance, efficient power transmission, and enhanced system protection.

Is LC1D18BD + LAD4TBDL compatible with my system?

If you're using Telemecanique control systems, especially in electrical power transmission setups, then these models will likely be compatible. Contact us to verify.

Alternatives to LC1D18BD + LAD4TBDL

If you're looking for similar components, consider exploring other Telemecanique contactors and diodes in the same product line for compatible options.

Can I sell my surplus stock to PLC2DAY?

Yes, absolutely. At PLC2DAY, we provide solutions for surplus stock recovery and resale. Contact us for more information on selling your surplus items.
