Telemecanique TeSys D Contactor

Description

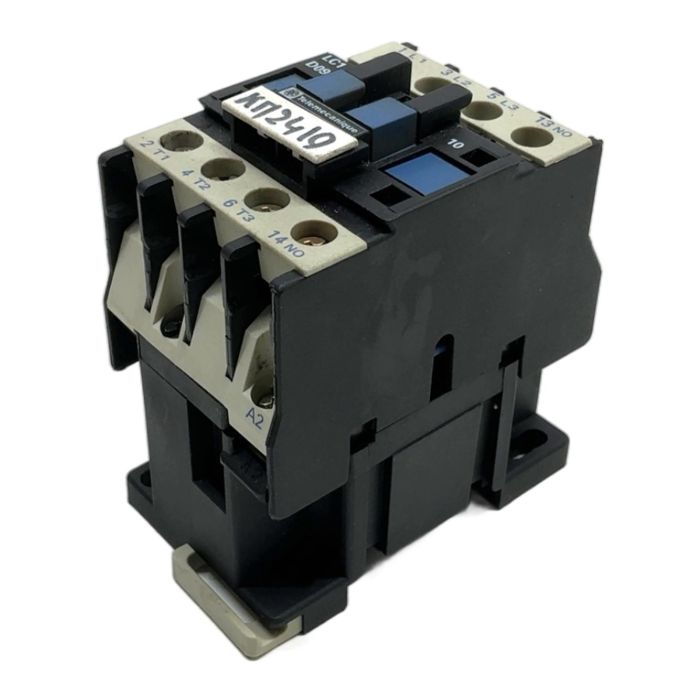

This is a Telemecanique LC1 D09 10 (LC1D09F7) 3-pole contactor, a robust and widely used component for controlling electric motors and other electrical loads. Part of the renowned TeSys D series, now under Schneider Electric, it ensures high reliability and a long mechanical and electrical life. This unit is configured with a 110V AC coil and one normally open auxiliary contact.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: LC1D09F7
• Series: TeSys D
• Poles: 3-Pole
• Rated Operational Current (AC-3, <= 440V): 9 A
• Motor Power (AC-3, 400V): 4 kW
• Rated Operational Current (AC-1, <= 690V): 25 A
• Coil Voltage: 110V AC 50/60 Hz
• Auxiliary Contacts: 1 NO (Normally Open)
• Mounting: DIN Rail or Screw Mount

Label Info

• Type: LC1 D09 10
• Coil Code: F7
• Standards: IEC/EN 60947, UL, CSA

Application

Designed for industrial applications including motor control, HVAC systems, lighting circuits, and switching of resistive loads. Its compact design makes it suitable for installation in tight control panel spaces.

Country of Origin

Made in France.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and saving approximately 14 kg of CO2 emissions compared to a new product. This is equivalent to driving a car for 70 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The AC-1 rating (25A) is for non-inductive or slightly inductive loads like heaters, while the AC-3 rating (9A) is specifically for starting squirrel-cage motors, which have a high inrush current. Always use the AC-3 rating for motor applications to ensure product longevity.

Yes, the TeSys D series is modular. You can add front-mount (LADN) or side-mount (LAD8N) auxiliary contact blocks to expand the number of NO (Normally Open) and NC (Normally Closed) contacts as needed for your control circuit.

'F7' is the Schneider Electric / Telemecanique coil voltage code. For this model, it specifies a coil voltage of 110V AC at 50/60 Hz, which is essential for correct operation in your control circuit.
