Telemecanique Integral 32 Protection Module

Description

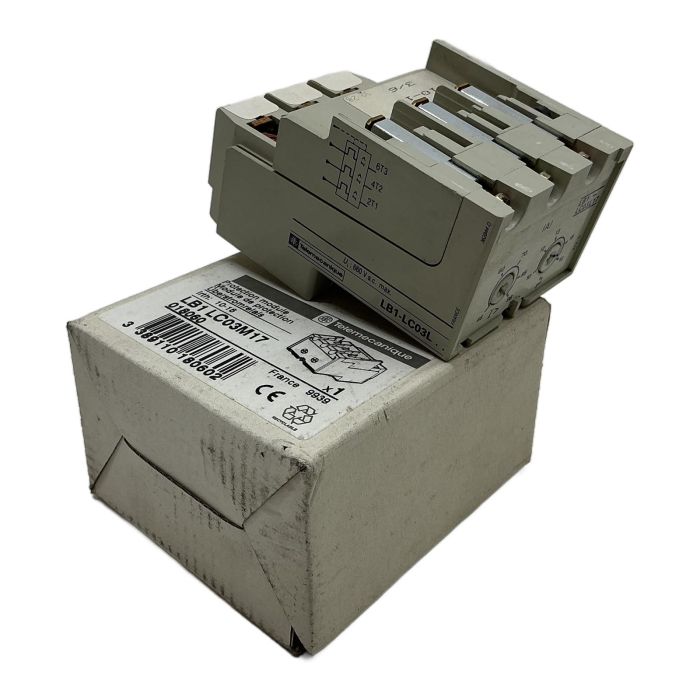

This is a Telemecanique LB1 LC03M17, a thermal-magnetic protection module designed for the Integral 32 contactor-breaker system. It offers an adjustable thermal overload setting range from 10 to 16 Amperes, providing precise and reliable protection for three-phase motors. As a new-old-stock component, it is an ideal spare part for maintaining or repairing existing industrial control panels. This module is known for its durability and is a key component for motor starting and protection applications.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Part Number: LB1 LC03M17
• Order Code: 018060
• Product Type: Thermal-Magnetic Protection Module
• Series: Integral 32
• Current Setting Range: 10 A to 16 A
• Poles: 3-Pole
• Condition: New Old Stock (NOS)

Label Info

• Irth: 10-16
• Model: LB1 LC03M17
• EAN: 3389110180602

Application

This protection module is specifically designed for direct mounting on Integral 32 contactor-breakers. It is commonly used in industrial automation for motor control, including applications like conveyor systems, pumps, fans, and other machinery requiring dependable overload and short-circuit protection.

Country of Origin

Made in France.

CO2 Impact

By purchasing this refurbished or new-old-stock part, you are contributing to a circular economy. The reuse of this component avoids the emission of approximately 6.0 kg of CO2 required to produce a new one, which is equivalent to driving a car for 30 km.

Availability

This is an obsolete item, but it is available from our stock. Limited quantities remaining. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What is the adjustable current range for this protection module?

This module has an adjustable thermal setting range from 10 to 16 Amperes, allowing for precise motor protection within this range.

No, it is not a stand-alone device. It is designed to be a component of the Telemecanique Integral 32 contactor-breaker system and must be mounted on a compatible base unit to function.

The Integral 32 series is obsolete. The modern equivalent from Schneider Electric is the TeSys U motor starter series. A comparable replacement would involve a TeSys U starter base (e.g., LUB32) and a suitable control and protection unit.
