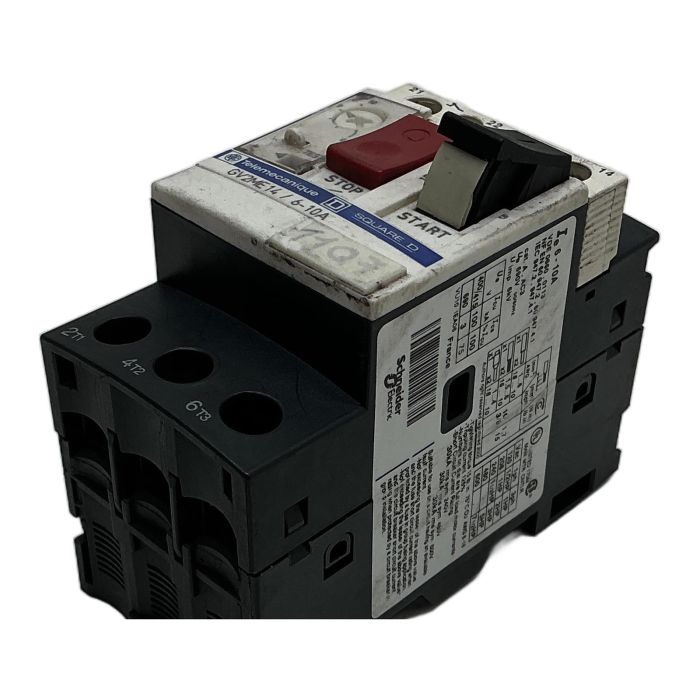

Schneider Electric Motor Protection Circuit Breaker GV2ME14

Description

The Schneider Electric GV2ME14 is a thermal-magnetic motor circuit breaker from the TeSys GV2 series. It is engineered to provide essential protection for three-phase motors against overloads and short circuits. Featuring a user-friendly push-button interface for start/stop control, it is a reliable component for manual motor control applications.

Specifications

• Manufacturer: Schneider Electric
• Type: GV2ME14
• Product Range: TeSys GV2
• Poles: 3-Pole
• Thermal Protection Adjustment Range: 6 to 10 A
• Rated Operational Voltage (Ue): up to 690V AC
• Control Type: Push-button
• Breaking Capacity (Icu): 100 kA at 400/415V AC
• Mounting: DIN Rail or Panel Mount

Label Info

• Ie: 6-10A
• Standards: IEC 947.2, IEC 947.4.1, VDE 0660
• Ui: 690V 50/60Hz
• Uimp: 6kV

Application

This motor circuit breaker is suitable for a wide variety of industrial applications, including conveyor systems, pumps, fans, and small machinery where reliable motor protection is critical.

Country of Origin

Made in France.

CO2 Impact

Opting for this refurbished component over a new one avoids the emission of approximately 10.4 kg of CO2, a significant saving for environmentally conscious operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'TEST' button allows you to simulate a thermal overload trip. Pressing it will trip the breaker, which confirms the mechanical trip mechanism is functioning correctly without needing an actual overcurrent condition.

Yes, the TeSys GV2 series is modular. You can add various accessories like front or side-mounted auxiliary contact blocks (GVAE, GVAN) and shunt or undervoltage trip modules (GVAU, GVAS) to enhance its functionality.

You should set the dial to the motor's Full Load Ampere (FLA) rating, which is found on the motor's nameplate. This ensures the breaker will trip if the motor draws excessive current, protecting it from damage.
