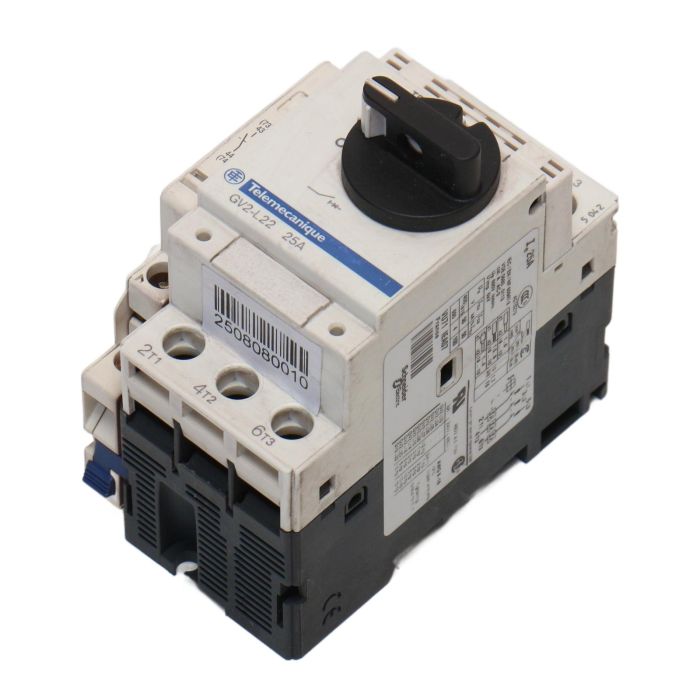

Circuit Breaker - Magnetic - 25A - Screw Terminal Connection

Product Description

This circuit breaker is designed for magnetic operation with a 25A capacity and screw terminal connection. It includes an auxiliary contact N/O + N/C - Side - Accessories TeSys GV2.

Product Specifications

Description: Circuit breaker - Magnetic - 25A - Screw terminal connection.

Model Code / Product Markings: GV2-L22

Current Rating: 25A

Manufacturer: Telemecanique

SKU: 2508080010

Price: $17.5

Category: Electrical Power Transmission

Product Label Info

Model Code / Product Markings: GV2L22, I. 25A, 1 L1, 5 L3, C, 3 L2, A015279, AWG, IEC/EN/NF 60947-2, 1...6, VDE 0660, 0113, x1, x2 18 10, cat. A, AC-3, 1.5...6, Ue 690V 50/60Hz, 10 1,7, Uimp 6kV, x1, x2 16 10 3/8 15, 1...4, Ue Icu Ics, x1, x2 18 10, V kA % Icu, 400/415 50 50, 690, 4, 100, VU71 IEA07, (mm2) (mra) (N.m), inch. Ib.in., D, 2 T1, 6T3, 4T2, Authors right reserved registered 2000, 480V a.c. max, 3ph, 240V, 480V, GV2 L03, GV2 L04, France, AWG 8-18, 75° C, GV2 L05, GV2 L06...

Model Code / Product Markings: GVAN11, Ie 6-10A, ³  C, YL, LISTED 170M, A015279, (mm2) (mm) (N.m), MAN. MTR. CNTLR., AWG, inch. lb.in., IEC/EN/NF 60947-2, Vac, 1ph, 3ph, 1...6, IEC/EN/NF 60947-4-1, x1, x2 18 10, 120 1/2HP, 1MP, VDE 0660, 0113, cat. A, AC-3, 1,5...6, 10 1,7, 208, 1HP, 2HP, Ue 690V 50/60Hz, x1, x2 16 10 38 15, 240 1 1/2HP, 3MP, Uimp 6kV, = 1...4, 480, 5HP, Ue Icu Ics, x1, x2 18... 10, Authors right reserved registered 2000, 600, 7 1/2HP, V kA Icu, 400/415 100 100, 690 6 100, VU30 TEA08, France, Schneider, Electric, -Tightening torque 15 lb. in. 75°C CU AWG 8-18, -Tripping current 125%, -Numbers on dial are full load motor currents, -Short Circuit Current Rating, 50KA rms sym. 240V, 50kA rms sym. 480V, 30kA rms sym. 600V, Suitable for use on a circuit having an available, fault current :, -Not exceeding the lesser of the above value, and the fuse short circuit current rating when, protected by a fuse in group fusing application., -Not exceeding the lesser of the above value, and the circuit breaker short circuit current, rating when protected by a circuit breaker in, group installation.

Application

This circuit breaker is suitable for various electrical power transmission applications where a 25A magnetic circuit breaker is required.

Country of Origin

This product is manufactured in France.

Method of Application

Installation should be carried out following the guidelines provided by the manufacturer for safe and efficient operation.

Safety Instructions

Handle with care and ensure proper grounding during installation to prevent electrical hazards.

Availability

Order now from PLC2Day, items in stock and ready for fast worldwide delivery.

Need urgent and express delivery, sourcing, or repairs? Contact us now.

Documentation

• Official datasheet or product page Telemecanique

Resources

Additional resources and manuals are available upon request. Contact us for details.

Internal & External Links

• All products from Telemecanique
• Explore similar products in Electrical Power Transmission

Frequently Asked Questions

What is the Circuit Breaker used for?

This circuit breaker is typically used in electrical power transmission systems to protect against overcurrents and short circuits.

What are the key advantages of this Circuit Breaker?

The key advantages include reliable magnetic operation, a 25A capacity, and screw terminal connections for easy installation.

Is GV2-L22 compatible with my system?

If your system requires a 25A magnetic circuit breaker with screw terminal connections, then GV2-L22 would be compatible. Contact us for further verification.

Alternatives to GV2-L22

If you're looking for similar circuit breakers, consider other models from Telemecanique or compatible brands in the same category.

Can I sell my surplus stock to PLC2DAY?

Yes, PLC2DAY accepts surplus stock for resale. Contact us for more information on how to sell your excess inventory.

Need Help?

Call us at +31(0)165 20 11 80 or get in touch online.
