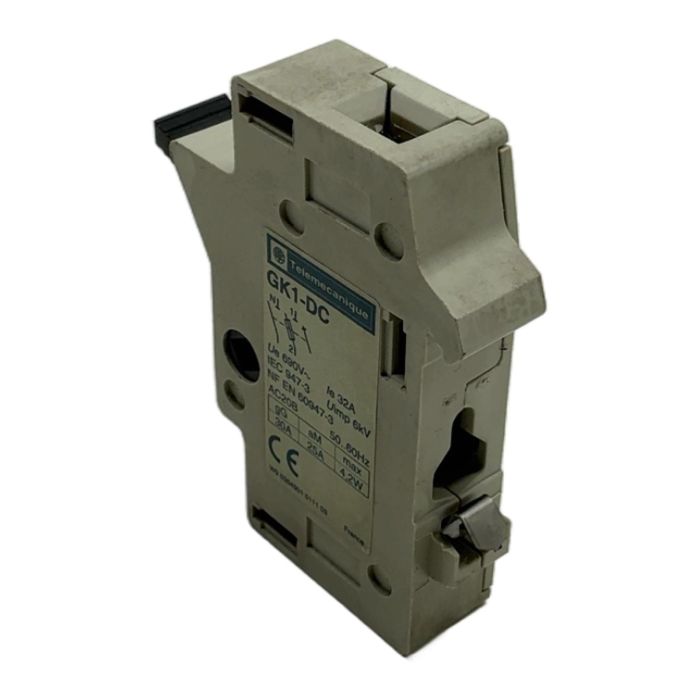

Telemecanique GK1-DC Fuse Disconnector

Description

The Telemecanique GK1-DC is a robust and reliable single-pole fuse disconnector designed for protecting industrial electrical circuits. It is rated for a continuous current of 32A and a voltage of up to 690V. This unit is compatible with 10x38mm cylindrical fuses and provides a safe means of circuit isolation for maintenance purposes. Its durable construction ensures long-lasting performance in demanding environments.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: GK1-DC
• Rated Operational Voltage (Ue): 690V AC
• Rated Operational Current (Ie): 32A
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Frequency: 50/60 Hz
• Compatible Fuse Size: 10x38mm
• Recommended Fuse Types: gG (30A max), aM (25A max)
• Power Dissipation: 4.2W max
• Standards: IEC 947-3, NF EN 60947-3

Label Info

• Brand: Telemecanique
• Type: GK1-DC
• Serial: W9 0364901 0111 03

Application

This fuse disconnector is ideal for use in motor control centers, distribution boards, and machine control panels for overcurrent protection of motors, transformers, and other electrical loads.

Country of Origin

Made in France.

CO2 Impact

By choosing this pre-owned component, you are preventing the emission of approximately 2.8 kg of CO2 associated with the production of a new one. This sustainable choice supports the circular economy.

Availability

This item is an obsolete component but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

The GK1-DC is designed for use with 10x38mm cylindrical fuses.

Yes, the rear of the housing includes a clip for mounting on a standard 35mm DIN rail, and it also features holes for direct panel mounting with screws.

A 'gG' fuse provides general purpose protection for resistive loads, while an 'aM' fuse is specifically for motor protection, offering protection against short circuits but allowing for the temporary high inrush current when a motor starts.
