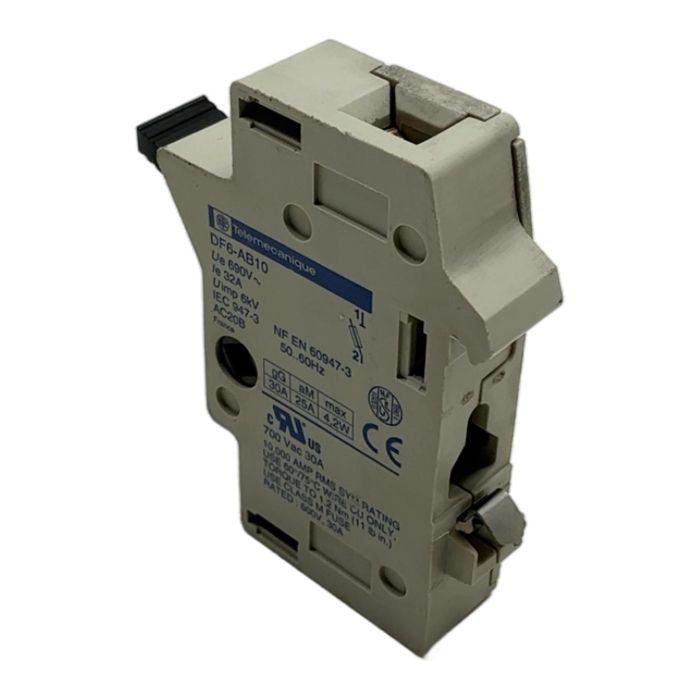

Telemecanique DF6-AB10 1-Pole Fuse Holder

Description

The Telemecanique DF6-AB10 is a high-quality, single-pole fuse holder for DIN rail mounting. It is designed to provide reliable overcurrent protection in industrial automation and control systems. This component is rated for a nominal current of 32A and a voltage of up to 690V AC, making it suitable for a wide range of applications. Its durable construction ensures long-term performance in demanding electrical environments.

Specifications

• Manufacturer: Telemecanique (now Schneider Electric)
• Model: DF6-AB10
• Poles: 1-Pole
• Rated Operational Current (Ie): 32A
• Rated Operational Voltage (Ue): 690V AC
• Rated Impulse Withstand Voltage (Uimp): 6kV
• Fuse Size: 10.3 x 38 mm
• Compatible Fuse Types: gG (max 30A), aM (max 25A)
• Mounting Type: DIN Rail
• Standards: IEC 947-3, NF EN 60947-3

Label Info

• UL/cULus Rating: 700 Vac, 30A
• Short Circuit Rating: 10,000 AMP RMS SYM
• Recommended Torque: 1.2 Nm (11 lb in.)

Application

Ideal for use in control cabinets, machinery, and electrical distribution panels for protecting motors, transformers, and other critical components from overcurrents.

Country of Origin

Made in France.

CO2 Impact

Reusing this component saves approximately 2.4 kg of CO2, contributing to a more sustainable operation by avoiding the production of a new part.

Availability

This is an obsolete item, available as a reliable used spare part. Limited stock available. Order now from PLC2Day for expert support and fast delivery.

FAQ

This fuse holder is designed for standard 10.3 x 38 mm cylindrical fuses.

The label explicitly states AC ratings (690V~, 700 Vac). For DC applications, you must consult the original manufacturer's datasheet as voltage and breaking capacity ratings are typically lower and must be verified.

The label specifies a tightening torque of 1.2 Nm (or 11 lb in.) to ensure a secure and reliable electrical connection.
