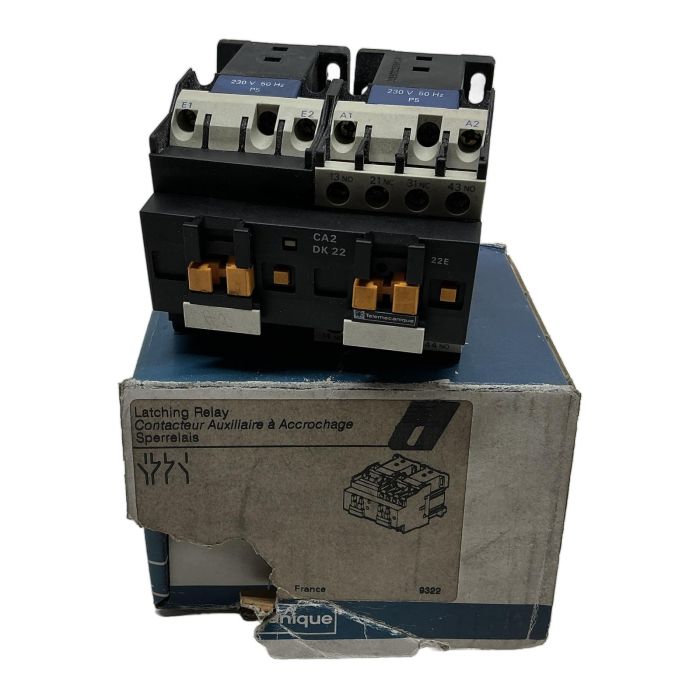

Telemecanique CA2-DK Latching Control Relay

Description

The Telemecanique CA2DK22P5 is a high-reliability latching control relay designed for industrial control applications. As a bistable relay, it maintains its last switched position without continuous power to the coil, making it highly energy-efficient and ideal for circuits where state memory is critical during power outages. This unit features a 2NO and 2NC contact arrangement and is operated by a 230V 50Hz AC coil.

Specifications

• Manufacturer: Telemecanique (now Schneider Electric)
• Model: CA2DK22P5
• Product Type: Latching Control Relay
• Coil Voltage: 230V AC at 50 Hz
• Contact Configuration: 2 Normally Open (2NO), 2 Normally Closed (2NC)
• Series: CA2-DK

Label Info

• CA2 DK 22
• Coil: 230 V 50 Hz P5

Application

This relay is suitable for a wide range of applications, including industrial automation systems, motor control circuits, lighting control, and any system requiring a pulse-controlled, mechanically held switch.

Country of Origin

Made in France.

CO2 Impact

Opting for this reused component prevents the emission of approximately 12 kg of CO2, which is comparable to driving a car for 60 km. Your choice supports a more sustainable industrial sector.

Availability

This is an obsolete item but available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the primary difference between this CA2DK22P5 latching relay and a standard control relay?

Answer: The CA2DK22P5 is a latching relay, which means it mechanically holds its last position (energized or de-energized) even after the control power is removed. It requires a separate electrical impulse to change state, making it ideal for applications where power conservation or state memory during power loss is critical. A standard relay returns to its default state when the coil is de-energized.

Answer: This relay uses two separate control inputs. One electrical pulse to the 'set' terminals (e.g., E1/E2) closes the NO contacts and opens the NC contacts, and the relay remains in this state. A subsequent pulse to the 'reset' terminals (e.g., A1/A2) will return it to its original state.

Answer: No, the coil is specific to the model number suffix 'P5', which designates a 230V 50Hz AC coil. Attempting to use a different voltage can damage the coil or cause unreliable operation. If a different control voltage is needed, a relay with the corresponding coil code must be used.
