Description: ATV71HU55N4: variable speed drive ATV71 - 5.5kW-7.5HP - 480V - EMC filter-graphic terminal, 3389118064621, Include: VW3A1101, control Panel. 3389118069305., Product Info: Altivar 71, Product or component type, Variable speed drive, Product specific application, Complex, high-power machines, Component name, ATV71, Motor power kW, 5.5 kW, 3 phases at 380...480 V, Motor power hp, 7.5 hp, 3 phases at 380...480 V, Maximum motor cable length, 50 m shielded cable, 100 m unshielded cable, power supply voltage, 380...480 V - 15...10 %, Network number of phases, 3 phases, Line current, 17 A for 480 V 3 phases 5.5 kW / 7.5 hp, 20.3 A for 380 V 3 phases 5.5 kW / 7.5 hp, EMC filter, Integrated, Assembly style, With heat sink, Apparent power, 13.4 kVA at 380 V 3 phases 5.5 kW / 7.5 hp, Prospective line Isc, 22 kA for 3 phases, Nominal output current, 11 A at 4 kHz 460 V 3 phases 5.5 kW / 7.5 hp, 14.3 A at 4 kHz 380 V 3 phases 5.5 kW / 7.5 hp, Maximum transient current, Label Info: Telemecanique, ATV71HU55N4, 5.5kW -7.5HP, Input, Alimentation, Entrada, V1.2 IE18, Output, Sortie, Salida, U (V ~), 380...480 3, 0...380-480, KW, F (Hz), 1(A), 50/60, 0...1600, 20.3, 14.3, U (V ~), 460...480 3, 0...460, 60, 0...1600, 17, FLA 14.3, Cu AWG10, 75°C, F (Hz), I(A), E, UL Class J 40A max, HP Suitable for use on a circuit capable of, delivering not more than 5000 rms, symetrical Ampers, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, 26.5 lb.in, 3 N.m, 880727687001, CE, UL, China, SP, NOM, 224330, B44.1/ASME-A17.5, LISTED 170M, IND.CONT.EQ., 117, ANC, ☑N998, Schneider, Electric, 21.5 A for 60 s 3 phases 5.5 kW / 7.5 hp, 23.6 A for 2 s 3 phases 5.5 kW / 7.5 hp

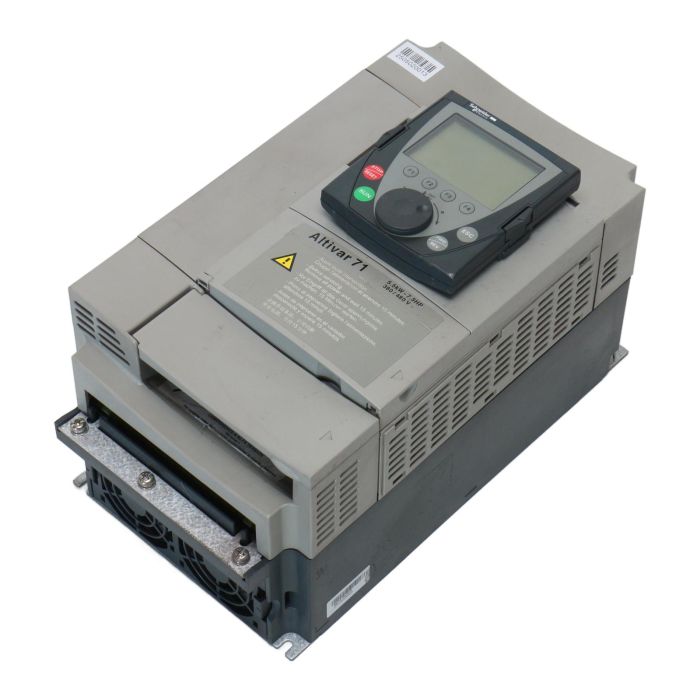

• Description: ATV71HU55N4 - variable speed drive ATV71 - 5.5kW-7.5HP - 480V - EMC filter-graphic terminal, 3389118064621
• Include: VW3A1101 - control Panel, 3389118069305
• Product Info: Altivar 71
• Product or component type: Variable speed drive
• Product specific application: Complex, high-power machines
• Component name: ATV71
• Motor power kW: 5.5 kW, 3 phases at 380...480 V
• Motor power hp: 7.5 hp, 3 phases at 380...480 V
• Maximum motor cable length: 50 m shielded cable, 100 m unshielded cable
• Power supply voltage: 380...480 V - 15...10 %
• Network number of phases: 3 phases
• Line current: 17 A for 480 V 3 phases 5.5 kW / 7.5 hp, 20.3 A for 380 V 3 phases 5.5 kW / 7.5 hp
• EMC filter: Integrated
• Assembly style: With heat sink
• Apparent power: 13.4 kVA at 380 V 3 phases 5.5 kW / 7.5 hp
• Prospective line Isc: 22 kA for 3 phases
• Nominal output current: 11 A at 4 kHz 460 V 3 phases 5.5 kW / 7.5 hp, 14.3 A at 4 kHz 380 V 3 phases 5.5 kW / 7.5 hp
• Label Info: Telemecanique, ATV71HU55N4, 5.5kW -7.5HP, Input, Alimentation, Entrada, V1.2 IE18, Output, Sortie, Salida, U (V ~), 380...480 3, 0...380-480, KW, F (Hz), 1(A), 50/60, 0...1600, 20.3, 14.3, U (V ~), 460...480 3, 0...460, 60, 0...1600, 17, FLA 14.3, Cu AWG10, 75°C, F (Hz), I(A), E, UL Class J 40A max, HP Suitable for use on a circuit capable of, delivering not more than 5000 rms, symetrical Ampers, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, 26.5 lb.in, 3 N.m, 880727687001, CE, UL, China, SP, NOM, 224330, B44.1/ASME-A17.5, LISTED 170M, IND.CONT.EQ., 117, ANC, ☑N998, Schneider, Electric, 21.5 A for 60 s 3 phases 5.5 kW / 7.5 hp, 23.6 A for 2 s 3 phases 5.5 kW / 7.5 hp

```html ``` SEO-friendly item description: "Discover the Telemecanique ATV71HU55N4 + VW3A1101 for various industrial applications. Purchase this item at PLC2Day. Manufacturer: Telemecanique."
