Description: variable speed drive ATV71 - 3kW-480V - EMC filter-graphic terminal, Product Info: Range of Product, Altivar 71, Product or Component Type, Variable speed drive, Product Specific Application, Complex, high-power machines, Component name, ATV71, Motor power kW, 3 kW, 3 phase 380...480 V, Maximum motor cable length, 164.04 ft (50 m) shielded cable, 328.08 ft (100 m) unshielded cable, power supply voltage, 380...480 V - 15...10 %, Phase, 3 phase, Line current, 9 A 480 V 3 phase 3 kW, 10.7 A 380 V 3 phase 3 kW, EMC filter, Integrated, Assembly style, With heat sink, Apparent power, 7 kVA 380 V 3 phase 3 kW, Prospective line Isc, 5 kA 3 phase, Nominal output current, 6.2 A 4 kHz 460 V 3 phase 3 kW, 7.8 A 4 kHz 380 V 3 phase 3 kW, Maximum transient current, 11.7 A 60 s 3 phase 3 kW, 12.9 A 2 s 3 phase 3 kW, Output frequency, 0.1…599 Hz, label Info: 3kW, Telemecanique, ATV71HU30N4, Input, Alimentation, Entrada, V1.2 IE18, Output, Sortie, Salida, U (V-), 380...480 3 0...380-480, KW, F (Hz), 50/60, 0...1600, I(A), 10.7, 7.8, U (V ~), -, 60, F (Hz), 1(A), E, 0...1600, FLA-, UL Class J17.5A max, HP Suitable for use on a circuit capable of, delivering not more than 5000 rms, symetrical Ampers, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, Cu AWG14, 75°C, 12.3 lb.in, 1.4 N.m, II (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, POW.CONV.EQ., China, SA NOM, 224330, 117, B44.1/ASME-A17.5, ANCE, ☑ N998, Schneider, Electric

• Description: variable speed drive ATV71 - 3kW-480V - EMC filter-graphic terminal
• Product Info: Range of Product - Altivar 71
• Product or Component Type: Variable speed drive
• Product Specific Application: Complex, high-power machines
• Component name: ATV71
• Motor power kW: 3 kW, 3 phase 380...480 V
• Maximum motor cable length: 164.04 ft (50 m) shielded cable, 328.08 ft (100 m) unshielded cable
• Power supply voltage: 380...480 V - 15...10 %
• Phase: 3 phase
• Line current: 9 A 480 V 3 phase 3 kW, 10.7 A 380 V 3 phase 3 kW
• EMC filter: Integrated
• Assembly style: With heat sink
• Apparent power: 7 kVA 380 V 3 phase 3 kW
• Prospective line Isc: 5 kA 3 phase
• Nominal output current: 6.2 A 4 kHz 460 V 3 phase 3 kW, 7.8 A 4 kHz 380 V 3 phase 3 kW
• Maximum transient current: 11.7 A 60 s 3 phase 3 kW, 12.9 A 2 s 3 phase 3 kW
• Output frequency: 0.1…599 Hz
• Label Info: 3kW, Telemecanique, ATV71HU30N4, Input, Alimentation, Entrada, V1.2 IE18, Output, Sortie, Salida, U (V-), 380...480 3 0...380-480, KW, F (Hz), 50/60, 0...1600, I(A), 10.7, 7.8, U (V ~), -, 60, F (Hz), 1(A), E, 0...1600, FLA-, UL Class J17.5A max, HP Suitable for use on a circuit capable of, delivering not more than 5000 rms, symetrical Ampers, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, Cu AWG14, 75°C, 12.3 lb.in, 1.4 N.m, II (2) GD, CE, 0080, INERIS 07ATEX0004X, UL LISTED 170M, POW.CONV.EQ., China, SA NOM, 224330, 117, B44.1/ASME-A17.5, ANCE, ☑ N998, Schneider, Electric

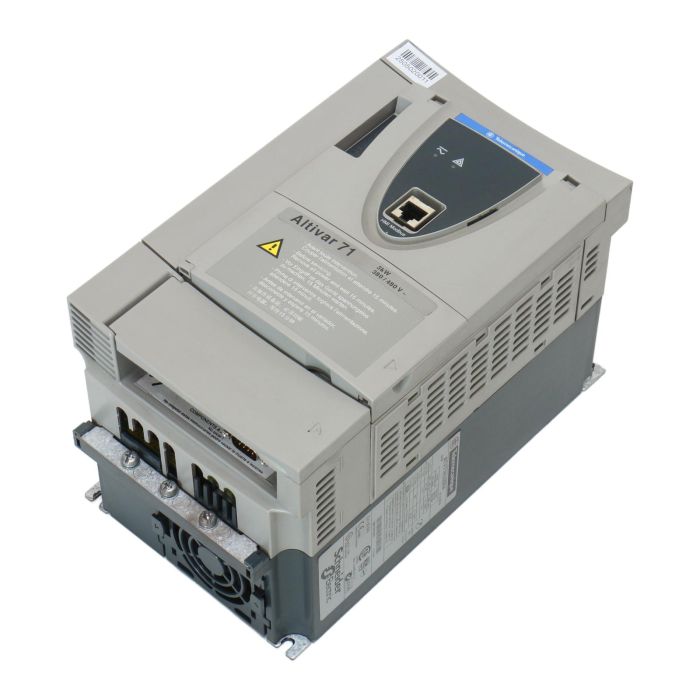

ATV71HU30N4 Telemecanique

Item Code: ATV71HU30N4

Manufacturer: Telemecanique

This high-quality variable frequency drive is suitable for various industrial applications such as automation, conveyors, and HVAC systems. Purchase this item at PLC2Day for efficient control and performance.
