Description: ATV71HU22N4: variable speed drive ATV71 - 2.2kW-3HP - 480V - EMC filter-graphic terminal, Include: VW3A1101, control Panel. NOTE: Small frontcover does not close., Product Info: Range of Product, Altivar 71, Product or Component Type, Variable speed drive, Product Specific Application, Complex, high-power machines, Component name, ATV71, Motor power kW, 2.2 kW, 3 phase 380...480 V, Maximum Horse Power Rating, 3 hp, 3 phase 380...480 V, Maximum motor cable length, 164.04 ft (50 m) shielded cable, 328.08 ft (100 m) unshielded cable, power supply voltage, 380...480 V - 15...10 %, Phase, 3 phase, Line current, 7.1 A 480 V 3 phase 2.2 kW / 3 hp, 8.2 A 380 V 3 phase 2.2 kW / 3 hp, EMC filter, Integrated, Assembly style, With heat sink, Apparent power, 5.4 kVA 380 V 3 phase 2.2 kW / 3 hp, Prospective line Isc, 5 kA 3 phase, Nominal output current, 4.8 A 4 kHz 460 V 3 phase 2.2 kW / 3 hp, 5.8 A 4 kHz 380 V 3 phase 2.2 kW / 3 hp, Maximum transient current, 8.7 A 60 s 3 phase 2.2 kW / 3 hp, 9.6 A 2 s 3 phase 2.2 kW / 3 hp, Label Info: Telemecanique, ATV71HU22N4, 2.2kW - 3HP, Input, V1.1 IE06, Output, Sortie, Salida, Alimentation, Entrada, U (V-) 380/480V 3380/480V 3, F (Hz), 50/60, 1 (A), 8.2, =, 0/500, 5.8, Cu AWG 14: 75°C, 11.5 lb.in/1.3Nm, UL Class J 15A max, Suitable for use on a circuit capable of, delivering not more than 5000 rms, symetrical Ampers, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, 6W0601000809, CE O, Սլ, SP, 224330, UL LISTED 170M, IND.CONT.EQ., France, ✓ N998, Schneider, Electric

• Description: ATV71HU22N4: variable speed drive ATV71 - 2.2kW-3HP - 480V - EMC filter-graphic terminal
• Include: VW3A1101, control Panel. NOTE: Small frontcover does not close.
• Product Info:
  • Range of Product: Altivar 71
  • Product or Component Type: Variable speed drive
  • Product Specific Application: Complex, high-power machines
  • Component name: ATV71
  • Motor power kW: 2.2 kW, 3 phase 380...480 V
  • Maximum Horse Power Rating: 3 hp, 3 phase 380...480 V
  • Maximum motor cable length: 164.04 ft (50 m) shielded cable, 328.08 ft (100 m) unshielded cable
  • Power supply voltage: 380...480 V - 15...10 %
  • Phase: 3 phase
  • Line current: 7.1 A 480 V 3 phase 2.2 kW / 3 hp, 8.2 A 380 V 3 phase 2.2 kW / 3 hp
  • EMC filter: Integrated
  • Assembly style: With heat sink
  • Apparent power: 5.4 kVA 380 V 3 phase 2.2 kW / 3 hp
  • Prospective line Isc: 5 kA 3 phase
  • Nominal output current: 4.8 A 4 kHz 460 V 3 phase 2.2 kW / 3 hp, 5.8 A 4 kHz 380 V 3 phase 2.2 kW / 3 hp
  • Maximum transient current: 8.7 A 60 s 3 phase 2.2 kW / 3 hp, 9.6 A 2 s 3 phase 2.2 kW / 3 hp
• Label Info: Telemecanique, ATV71HU22N4, 2.2kW - 3HP, Input, V1.1 IE06, Output, Sortie, Salida, Alimentation, Entrada, U (V-) 380/480V 3380/480V 3, F (Hz), 50/60, 1 (A), 8.2, =, 0/500, 5.8, Cu AWG 14: 75°C, 11.5 lb.in/1.3Nm, UL Class J 15A max, Suitable for use on a circuit capable of, delivering not more than 5000 rms, symetrical Ampers, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, 6W0601000809, CE O, Սլ, SP, 224330, UL LISTED 170M, IND.CONT.EQ., France, ✓ N998, Schneider, Electric

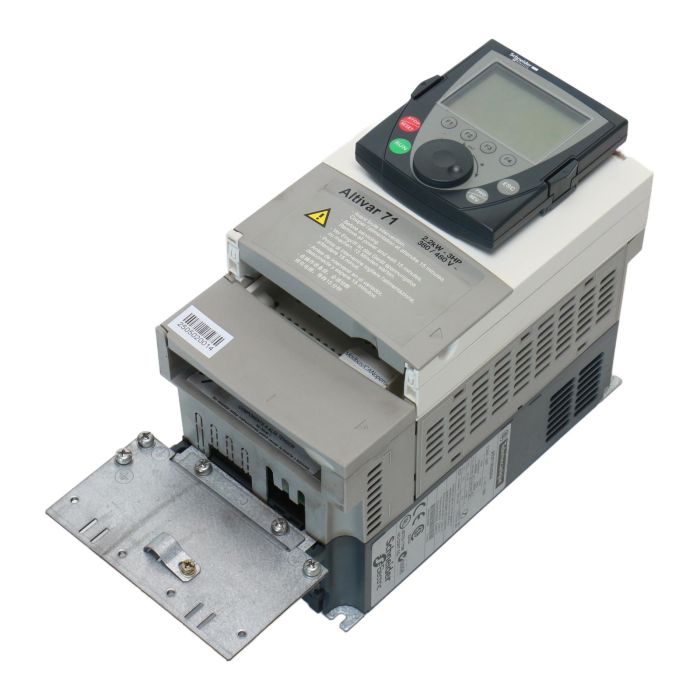

Telemecanique ATV71HU22N4 + VW3A1101

This industrial item is suitable for applications such as automation, packaging, conveyors, HVAC, and more. Purchase this product at PLC2Day.
