Description: ATV71HD55N4: Variable speed drive ATV71 - 55kW-75HP - 480V - EMC filter - graphic terminal, EAN: 3389118069541, Include: VW3A1101: Altivar - Graphic display - 240x160 pixels - IP54, EAN: 3389118069305. , Product Info: Range of Product, Altivar 71, Product or Component Type, Variable speed drive, Product Specific Application, Complex, high-power machines, Component name, ATV71, Motor power kW, 55 kW, 3 phase 380...480 V, Maximum Horse Power Rating, 75 hp, 3 phase 380...480 V, Maximum motor cable length, 328.08 ft (100 m) shielded cable, 656.2 ft (200 m) unshielded cable, power supply voltage, 380...480 V - 15...10 %, Phase, 3 phase, Line current, 101 A 480 V 3 phase 55 kW / 75 hp, 120 A 380 V 3 phase 55 kW / 75 hp, EMC filter, Integrated, Assembly style, With heat sink, Apparent power, 79 kVA 380 V 3 phase 55 kW / 75 hp, Prospective line Isc, 22 kA 3 phase, Nominal output current, 116 A 2.5 kHz 380 V 3 phase 55 kW / 75 hp, 96 A 2.5 kHz 460 V 3 phase 55 kW / 75 hp, Maximum transient current, 174 A 60 s 3 phase 55 kW / 75 hp, 191 A 2 s 3 phase 55 kW / 75 hp, label Info: 1, Telemecanique, ATV71HD55N4, 55kW 75HP, Input, Alimentation, Entrada, -, Output, Sortie, Salida, U(V~ 380...4803 0...380 - 480 3, V2.7 IE36, kW F(Hz), (A), 50/60, 120, 0...500, 116, U(V) 460...480 3, 0...460 3, F(Hz), I(A), 60, 101, 0...500, FLA 96, Cu AWG 1/0 :, 75°C, Short Circuit Withstand 10000 A, 360 lb.in, HP, 480 V, when protected by fuse, UL Class J 175A max, 41 N.m, Motor Overload Protection - Class 10, Proteccion Sobrecarga Motor - Clase 10, Protection Surcharge Moteur - Classe 10, 6W0937020076, ExII (2) GD, CE, 0080, INERIS 07ATEX0004X, YL, UL LISTED 170M, IND.CONT.EQ., E116875, SP, Ⓡ, 224330, Made in France, CSA-B44.1/ASME-A17.5, P, ✓ N1998, Schneider, Label Info: 2, VW3A1101, JHC905001015 W813788140121 A 12, CPU:V1.21E09#2 FLASH:V1.11E18 G0905, QC, PASS

• Description:
  • ATV71HD55N4: Variable speed drive ATV71 - 55kW-75HP - 480V - EMC filter - graphic terminal, EAN: 3389118069541
  • Include:
    • VW3A1101: Altivar - Graphic display - 240x160 pixels - IP54, EAN: 3389118069305
• Product Info:
  • Range of Product: Altivar 71
  • Product or Component Type: Variable speed drive
  • Product Specific Application: Complex, high-power machines
  • Component name: ATV71
  • Motor power kW: 55 kW, 3 phase 380...480 V
  • Maximum Horse Power Rating: 75 hp, 3 phase 380...480 V
  • Maximum motor cable length: 328.08 ft (100 m) shielded cable, 656.2 ft (200 m) unshielded cable
  • Power supply voltage: 380...480 V - 15...10 %
  • Phase: 3 phase
  • Line current: 101 A 480 V 3 phase 55 kW / 75 hp, 120 A 380 V 3 phase 55 kW / 75 hp
  • EMC filter: Integrated
  • Assembly style: With heat sink
  • Apparent power: 79 kVA 380 V 3 phase 55 kW / 75 hp
  • Prospective line Isc: 22 kA 3 phase
  • Nominal output current: 116 A 2.5 kHz 380 V 3 phase 55 kW / 75 hp, 96 A 2.5 kHz 460 V 3 phase 55 kW / 75 hp
  • Maximum transient current: 174 A 60 s 3 phase 55 kW / 75 hp, 191 A 2 s 3 phase 55 kW / 75 hp
• Label Info:
  • Telemecanique, ATV71HD55N4, 55kW 75HP
  • Input: Alimentation, Entrada, -, Output: Sortie, Salida
  • U(V~ 380...4803 0...380 - 480 3, V2.7 IE36, kW F(Hz), (A), 50/60, 120, 0...500, 116
  • U(V) 460...480 3, 0...460 3, F(Hz), I(A), 60, 101, 0...500, FLA 96
  • Cu AWG 1/0: 75°C, Short Circuit Withstand 10000 A, 360 lb.in, HP, 480 V, when protected by fuse, UL Class J 175A max, 41 N.m
  • Motor Overload Protection - Class 10, Proteccion Sobrecarga Motor - Clase 10, Protection Surcharge Moteur - Classe 10
  • 6W0937020076, ExII (2) GD, CE, 0080, INERIS 07ATEX0004X, YL, UL LISTED 170M, IND.CONT.EQ., E116875, SP, Ⓡ, 224330, Made in France, CSA-B44.1/ASME-A17.5, P, ✓ N1998, Schneider

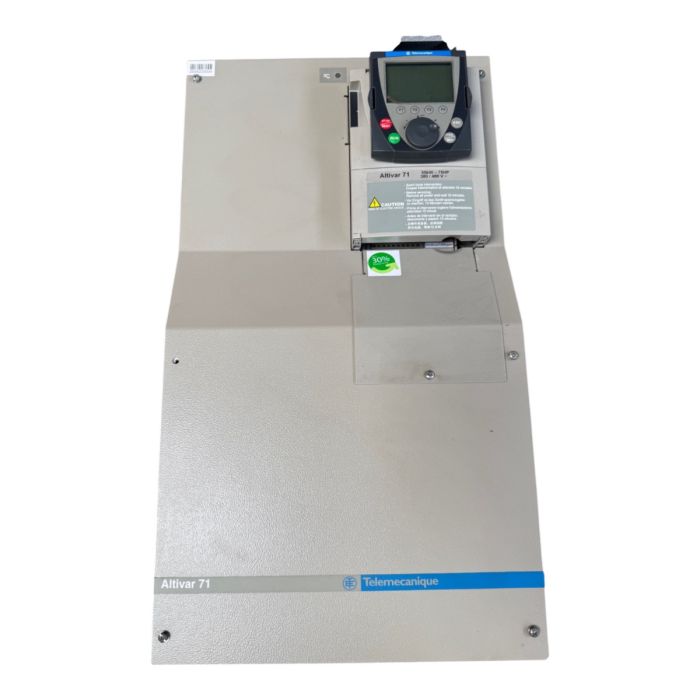

Telemecanique ATV71HD55N4 + VW3A1101

Available for purchase at PLC2Day, this Telemecanique product is ideal for industrial applications such as automation, packaging, conveyors, and HVAC.

For more items from Telemecanique, visit our website.
