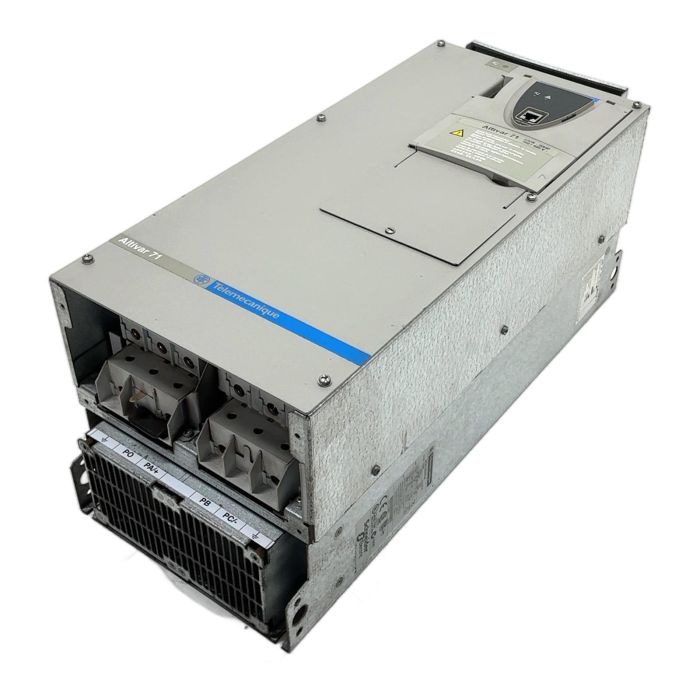

Telemecanique Altivar 71 Variable Frequency Drive

Description

The Telemecanique ATV71HD37N4 is a high-performance frequency inverter from the Altivar 71 range, designed for three-phase synchronous and asynchronous motors. With a power rating of 37 kW (50 HP), it is suited for demanding applications in various industries, including material handling, processing, and textiles. Its advanced flux vector control provides optimal performance and torque control. As an obsolete part, it is an essential component for maintaining legacy systems.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: Altivar 71
• Type Number: ATV71HD37N4
• Power Rating: 37 kW / 50 HP
• Input Voltage: 380...480 V AC, 3-Phase
• Input Frequency: 50/60 Hz
• Output Current: 79 A
• Firmware Version: V1.2 IE18
• Integrated Protocols: CANopen, Modbus

Label Info

• Serial Number: 6W0727000890
• UL Listed: 170M IND.CONT.EQ.

Application

This drive is commonly used for complex, constant torque applications such as conveyors, mixers, extruders, and industrial machinery that require precise speed and torque regulation.

Country of Origin

Made in France.

CO2 Impact

Reusing this product prevents the emission of approximately 536 kg of CO2, which is equivalent to the manufacturing footprint of a new unit. Choosing used parts is a sustainable choice for your business and the environment.

Availability

This item is a tested, used product in excellent working condition. Available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The ATV900 series offers significant improvements, including enhanced energy efficiency, built-in Ethernet connectivity for IoT integration, advanced real-time intelligence, and more sophisticated motor control algorithms compared to the robust but older ATV71 technology.

No. The 'N4' suffix in the model number specifically indicates a three-phase input voltage range of 380-480V. Using it with a single-phase supply would damage the drive or cause it to fault.

The Altivar 71 natively supports CANopen and Modbus RTU protocols. Additional communication capabilities can be added via optional expansion cards, including protocols like EtherNet/IP, Modbus TCP, Profibus DP, and DeviceNet.
