Description: ATV71HD11N4: variable speed drive ATV71 - 11kW-15HP - 480V - EMC filter-graphic terminal, Include: VW3A1101 Control Panel. NOTE: Small frontcover does not close., Product Info: Range of product, Altivar 71, Product or component type, Variable speed drive, Product specific application, Complex, high-power machines, Component name, ATV71, Motor power kW, 11 kW, 3 phases at 380...480 V, Motor power hp, 15 hp, 3 phases at 380...480 V, Maximum motor cable length, 50 m shielded cable, 100 m unshielded cable, power supply voltage, 380...480 V - 15...10 %, Network number of phases, 3 phases, Line current, 30 A for 480 V 3 phases 11 kW / 15 hp, 36.6 A for 380 V 3 phases 11 kW / 15 hp, EMC filter, Integrated, Assembly style, With heat sink, Apparent power, 24.1 kVA at 380 V 3 phases 11 kW / 15 hp, Prospective line Isc, 22 kA for 3 phases, Nominal output current, 21 A at 4 kHz 460 V 3 phases 11 kW / 15 hp, 27.7 A at 4 kHz 380 V 3 phases 11 kW / 15 hp, Maximum transient current, 41.6 A for 60 s 3 phases 11 kW / 15 hp, 45.7 A for 2 s 3 phases 11 kW / 15 hp, Label Info: Telemecanique, ATV71HD11N4, 11kW-15HP, V1.1 IE06, Output, Input, Alimentation, Entrada, Sortie, Salida, U (V-) 380/480V 3 380/480V 3, F (Hz), 50/60, 0/500, I (A), 36.6, 27.7, E, UL Class J, 60A max, Cu AWG 8: 75°C, 22.1 lb.in/2.5Nm, Suitable for use on a circuit capable of, delivering not more than 5000 rms, symetrical Ampers, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, 6W0551000117, CE O, Սլ, SP, 224330, UL LISTED 170M, IND.CONT.EQ., France, ✓ N998, Schneider, Electric

• Description: ATV71HD11N4: variable speed drive ATV71 - 11kW-15HP - 480V - EMC filter-graphic terminal, Include: VW3A1101 Control Panel. NOTE: Small frontcover does not close.
• Product Info:
  • Range of product: Altivar 71
  • Product or component type: Variable speed drive
  • Product specific application: Complex, high-power machines
  • Component name: ATV71
  • Motor power kW: 11 kW, 3 phases at 380...480 V
  • Motor power hp: 15 hp, 3 phases at 380...480 V
  • Maximum motor cable length: 50 m shielded cable, 100 m unshielded cable
  • Power supply voltage: 380...480 V - 15...10%
  • Network number of phases: 3 phases
  • Line current: 30 A for 480 V 3 phases 11 kW / 15 hp, 36.6 A for 380 V 3 phases 11 kW / 15 hp
  • EMC filter: Integrated
  • Assembly style: With heat sink
  • Apparent power: 24.1 kVA at 380 V 3 phases 11 kW / 15 hp
  • Prospective line Isc: 22 kA for 3 phases
  • Nominal output current: 21 A at 4 kHz 460 V 3 phases 11 kW / 15 hp, 27.7 A at 4 kHz 380 V 3 phases 11 kW / 15 hp
  • Maximum transient current: 41.6 A for 60 s 3 phases 11 kW / 15 hp, 45.7 A for 2 s 3 phases 11 kW / 15 hp
• Label Info: Telemecanique, ATV71HD11N4, 11kW-15HP, V1.1 IE06, Output, Input, Alimentation, Entrada, Sortie, Salida, U (V-) 380/480V 3 380/480V 3, F (Hz), 50/60, 0/500, I (A), 36.6, 27.7, E, UL Class J, 60A max, Cu AWG 8: 75°C, 22.1 lb.in/2.5Nm, Suitable for use on a circuit capable of, delivering not more than 5000 rms, symetrical Ampers, 480 V maximum, Motor Protective Device - Class 10, Proteccion de motor - Clase 10, Protection Moteur - Classe 10, 6W0551000117, CE O, Սլ, SP, 224330, UL LISTED 170M, IND.CONT.EQ., France, ✓ N998, Schneider, Electric

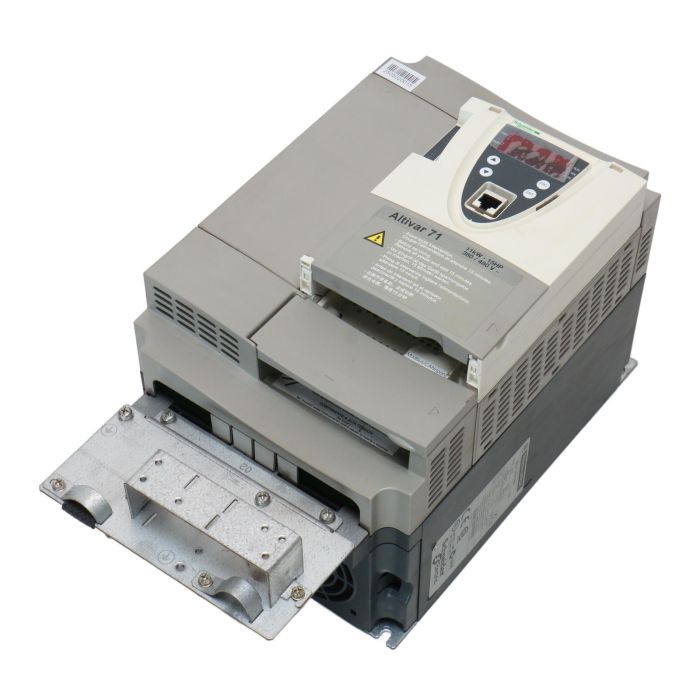

Telemecanique ATV71HD11N4 + VW3A1101

This industrial item is perfect for automation, conveyors, and HVAC systems. It is available for purchase at PLC2Day.
