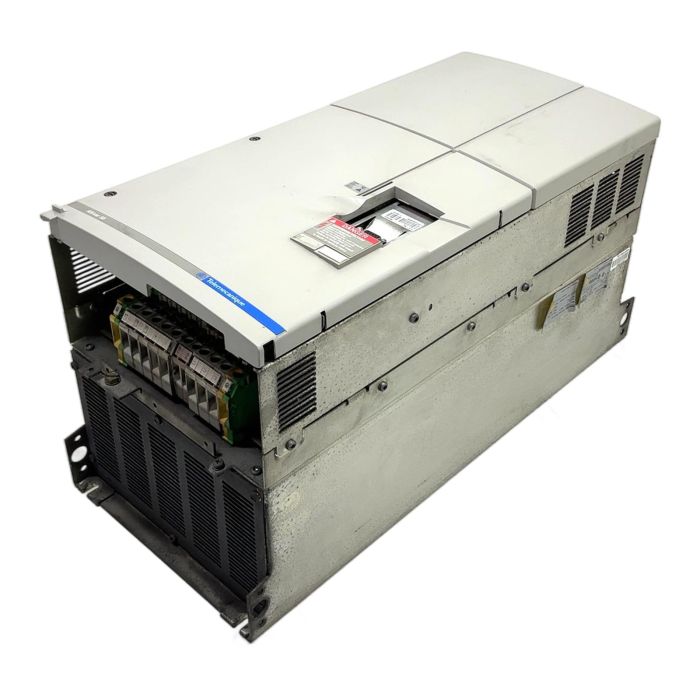

Telemecanique Altivar 58 Variable Speed Drive

Description

The Telemecanique ATV58HD28N4 is a high-performance frequency inverter from the reliable Altivar 58 series. It is designed to control three-phase asynchronous motors in a wide variety of industrial applications. This drive offers excellent control capabilities, robustness, and is an ideal replacement part for maintaining existing installations.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Series: Altivar 58
• Model: ATV58HD28N4
• Input Voltage: 380-500V AC, 3-Phase, 50/60 Hz
• Power Rating (Standard Torque): 22 kW / 30 HP
• Power Rating (High Torque): 18.5 kW / 25 HP
• Output Current (Standard Torque): 44 A
• Output Current (High Torque): 41 A
• Output Frequency: 0.1 to 500 Hz
• Communication: Integrated Modbus port

Label Info

• Model: ATV58HD28N4
• Input: 3Ph, 380/500V, 50/60Hz, 51/41A (Std Torque)
• Output: 3Ph, 380/500V, 44A (Std Torque)
• Serial No: 0344000123

Application

This frequency inverter is suitable for various applications, including pumps, fans (variable torque), as well as conveyors, mixers, and machine tools (constant torque).

Country of Origin

Made in France.

CO2 Impact

Choosing this pre-owned drive over a new one saves approximately 880 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This is an obsolete but available spare part. Limited stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, basic configuration can be done using the navigation buttons and the built-in 4-digit display. However, for advanced programming and diagnostics, the optional VW3A58101 graphic display terminal is highly recommended.

The standard ATV58HD28N4 comes with a Modbus serial link. Optional communication cards can be installed for other protocols like CANopen, DeviceNet, Profibus-DP, and Ethernet.

Absolutely. The Altivar 58 is designed for both variable torque (like pumps and fans) and constant torque (like conveyors and mixers) applications. The "High Torque" rating of 18.5 kW is specifically for these demanding constant torque loads.
