Telemecanique Altivar 18 Variable Frequency Drive

Description

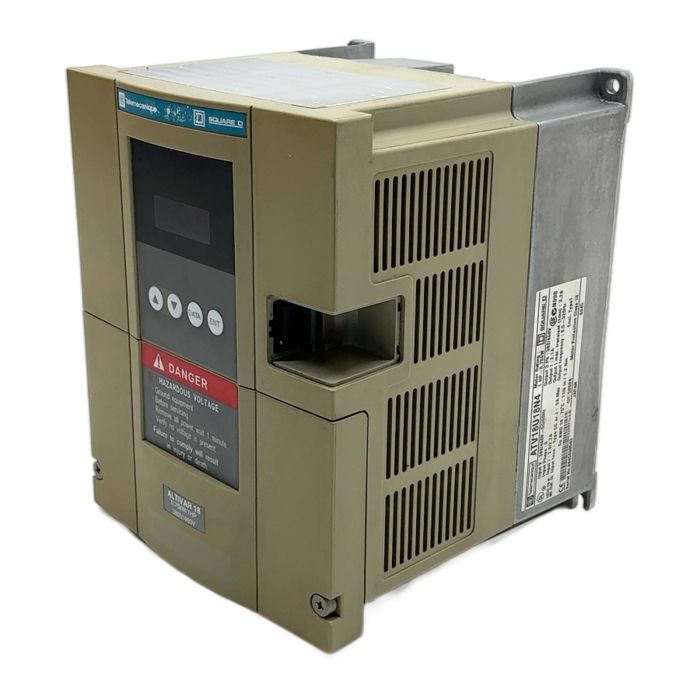

The ATV18U18N4 is a variable speed drive controller from the Telemecanique Altivar 18 series, designed for 0.75 kW (1 HP) three-phase asynchronous motors. It provides efficient and precise motor speed control, making it a reliable choice for various industrial applications such as pumps, fans, and simple conveying systems. This compact drive is engineered for simplicity and durability, ensuring a long service life in demanding environments.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: ATV18U18N4
• Series: Altivar 18
• Power Rating: 0.75 kW / 1 HP
• Input Voltage: 3-Phase 380 to 460V, 50/60Hz
• Input Current: 2.9A / 2.7A
• Output Voltage: 3-Phase 380 to 460V
• Output Current (Nominal): 2.1A
• Output Current (Max. Transient, 1 min): 3.2A
• Output Frequency Range: 0.5 to 320Hz
• Enclosure Rating: Type 1

Label Info

• Type: ATV18U18N4
• Serial Number: 8045090503

Application

This drive is ideal for standard industrial applications requiring variable speed control, including HVAC fans, centrifugal pumps, material handling conveyors, and other machinery where energy savings and process optimization are desired.

Country of Origin

Made in Japan.

CO2 Impact

By purchasing this pre-owned unit, you are contributing to the circular economy and have helped avoid approximately 68 kg of CO2 emissions associated with the production of a new device.

Availability

This unit is an obsolete but functional spare part. Availability is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, while the integrated keypad is sufficient for basic setup, the Altivar 18 series can also be programmed using an optional remote keypad (VW3A18201) or via a PC with PowerSuite software, connected through the Modbus port.

The ATV18U18N4 has built-in DC injection braking capabilities. However, it does not have a built-in dynamic braking chopper. For applications requiring rapid deceleration or handling overhauling loads, an external braking resistor and a separate braking unit would be necessary.

No, the Altivar 18 series is an older generation drive. Its primary communication protocol is Modbus RTU via its serial port. It is not natively compatible with modern Ethernet-based protocols like EtherNet/IP or Profinet. A gateway would be required for integration into such networks.
