Telemecanique Advantys Telefast Relay Output Module

Description

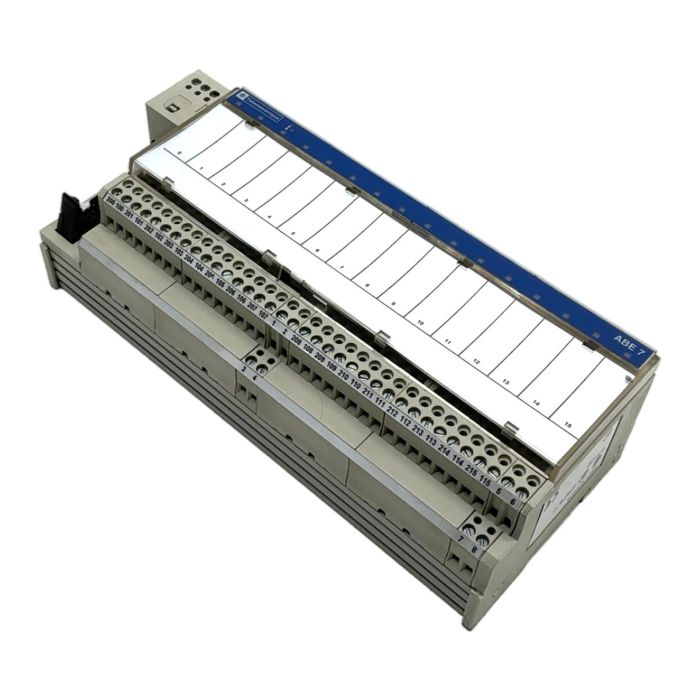

The ABE7R16T210 is a 16-channel relay output connection sub-base from the Telemecanique Advantys Telefast ABE7 series. It is designed to create a rapid and reliable connection between your PLC's I/O card and field devices, significantly reducing wiring time and potential for errors. This module uses a HE10 connector for the PLC link and screw-type terminals for field wiring.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Type: ABE7R16T210
• Product Range: Advantys Telefast ABE7
• Function: Connection sub-base with output relays
• Number of Channels: 16
• PLC Connection: 1 HE10 connector
• Field Connection: Screw terminals
• Mounting: DIN rail

Label Info

• Model: ABE7-R16T210
• Pilot Duty: C300 R160
• Certifications: CE, UL, GL

Application

This module is ideal for interfacing with digital output cards of PLCs like the Modicon M340, Premium, and Quantum series, providing a robust relay interface for switching various loads in industrial automation applications.

Country of Origin

Made in France.

CO2 Impact

Choosing this pre-owned module over a new one prevents the emission of approximately 20.0 kg of CO2, contributing to a more sustainable industrial environment. This saving is comparable to driving 100 km in a car.

Availability

This item is a tested, pre-owned unit in excellent condition. Order now from PLC2Day for expert support and fast delivery.

FAQ

This connection base is designed for use with Schneider Electric's Modicon M340, Modicon Premium, and Modicon Quantum PLC series digital output cards.

Each relay output typically has a maximum switching current of 2A for resistive loads. It is crucial to consult the official product datasheet for detailed specifications regarding different load types (inductive, etc.) and derating curves.

A standard 20-way ribbon cable with HE10 connectors, such as the Schneider Electric ABE7CPAxx series, is used to connect the ABE7R16T210 to the corresponding PLC I/O card.
