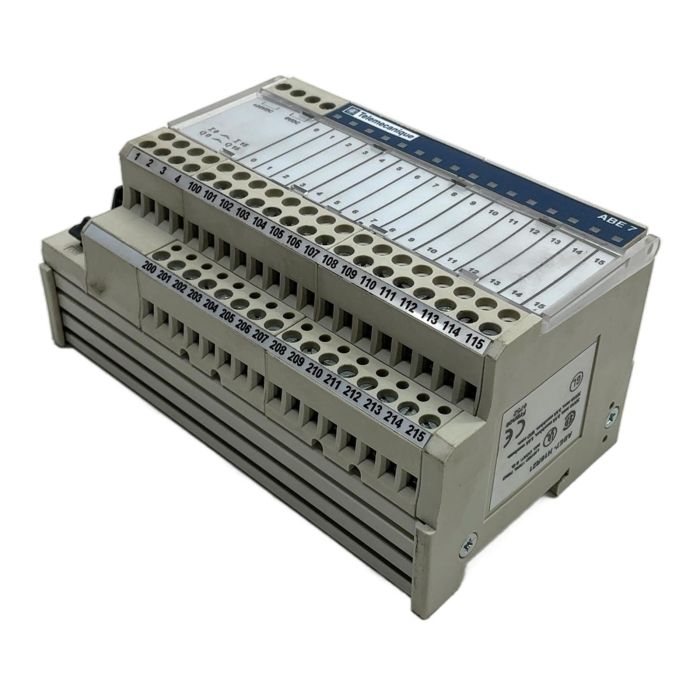

Telemecanique ABE7-H16R21 Telefast 2 Relay Output Sub-base

Description

The ABE7-H16R21 is a 16-channel relay output connection sub-base from the Telemecanique Telefast 2 family. It is engineered to provide a reliable interface between digital output modules of PLCs (like Modicon M340, Premium, Twido) and field actuators. This module simplifies wiring, reduces installation time, and provides clear connection points for control circuits. Its robust design makes it a durable component for industrial environments.

Specifications

• Manufacturer: Telemecanique (Schneider Electric)
• Model: ABE7-H16R21
• Product Range: Telefast ABE7
• Number of Channels: 16
• Output Type: Relay
• Rated Supply Voltage: 24V DC
• PLC Connection: 1 x 20-way HE10 connector
• Terminal Type: Screw terminals

Label Info

• Max Voltage: 30Vdc
• Current per Channel: 0.1A (with common), 0.5A (without common)
• Max Current per Common: 1.6A
• Certifications: UL, SP (CSA), GL, CE

Application

This sub-base is ideal for connecting PLC digital outputs to control devices such as contactors, solenoids, and indicator lamps in various industrial automation applications, particularly for maintaining or expanding legacy control systems.

Country of Origin

Made in France.

CO2 Impact

Choosing this pre-owned ABE7-H16R21 saves approximately 16 kg of CO2 compared to manufacturing a new unit. This saving is equivalent to the emissions from driving a standard car for 80 kilometers.

Availability

This is an obsolete item, available as a refurbished spare part. Essential for keeping established production lines running. Order now from PLC2Day for expert support and fast delivery.

FAQ

The maximum current depends on the configuration. With a common connection, it is 0.1A per channel with a total of 1.6A for the common. Without a common, the rating is 0.5A per channel.

This sub-base uses a 20-pin HE10 (or IDC) connector. You will need a corresponding Telefast cable, such as the ABE7CPA02, to connect it to compatible PLC I/O cards from ranges like Modicon M340 or Twido.

No, the ABE7-H16R21 is a standard relay output module and is not certified for use in safety-critical applications. For safety circuits, you must use dedicated safety relays or safety PLC modules.
