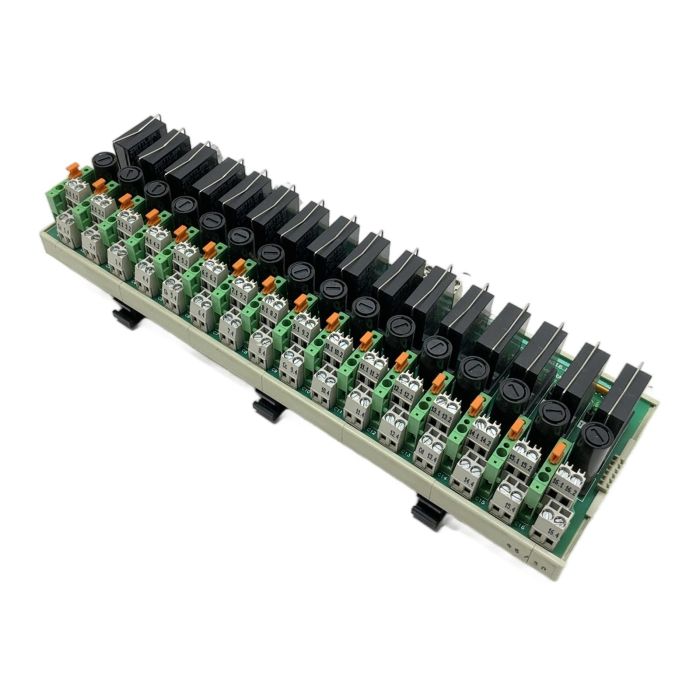

Telemecanique Relay Output Module 16-Channel 24V DC ABE 6R16S63

Description

The Telemecanique ABE 6R16S63 is a 16-channel relay output sub-base from the Advantys Telefast 2 series. It is designed to provide a straightforward and reliable interface between a PLC and field devices. Each of the 16 outputs is protected by a 2A fuse, ensuring the safety of your control system. This module is ideal for applications requiring the switching of multiple 24V DC loads.

Specifications

• Manufacturer: Telemecanique
• Type Number: ABE 6R16S63
• Product Type: Relay Output Module
• Number of Channels: 16
• Input Voltage: 24V DC
• Output Current: Max 2A per channel (fused)
• Connection: Screw-type terminals
• Mounting: DIN Rail

Label Info

• Brand: Telemecanique
• Model: ABE 6R16S63
• Specs: 16 Digital Outputs, 16 x FUS 2A, 24vdc

Application

This module is typically used in industrial automation systems with Modicon PLCs for controlling actuators, solenoid valves, motors, and other field devices that require a relay interface.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused ABE 6R16S63, you are helping to avoid approximately 20 kg of CO2 emissions associated with the production of a new unit. This is a significant contribution to sustainable industrial practices.

Availability

This is an obsolete item, but it is available from stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

Can I replace the relays on the ABE 6R16S63 individually?

No, the relays on this board are soldered directly to the PCB and are not designed for simple plug-in replacement.

What type of fuse is required for this module?

This module uses 5x20mm glass fuses with a rating of 2A. Ensure you use the correct type and rating to protect the outputs.

Is this module compatible with modern Schneider Electric PLCs like the Modicon M580?

While it can be wired to work with many systems, this module was designed for older Modicon PLCs and uses a HE10 connector. For modern PLCs, it is recommended to use the current Advantys ABE7 series for guaranteed compatibility and simpler connectivity.
