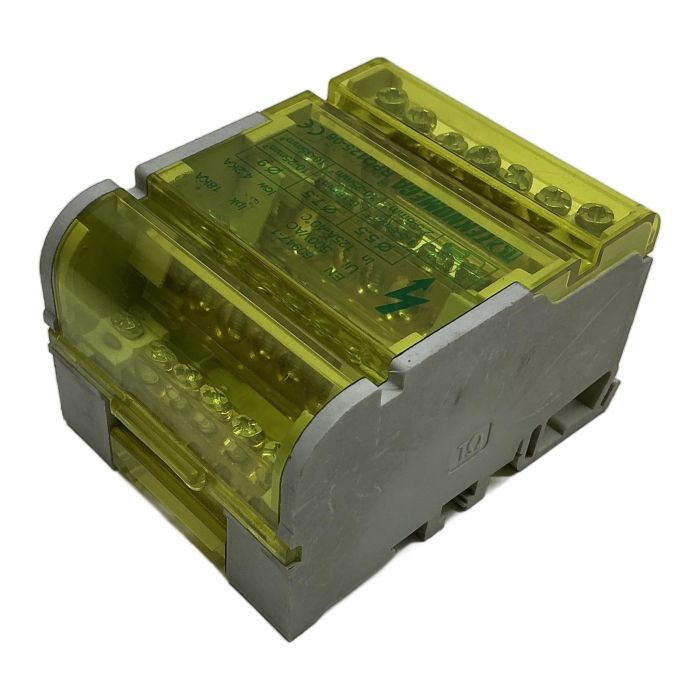

TEKNOMEGA RPQ125-06 125A Unipolar Distribution Block

Description

The TEKNOMEGA RPQ125-06 is a high-quality unipolar distribution block designed for secure and organized power distribution in industrial control cabinets and switchboards. Rated for a nominal current of 125A and an insulation voltage of 500VAC, it provides a reliable connection point for multiple circuits. Its compact design allows for efficient use of space on a standard DIN rail, and the transparent, removable cover ensures protection against accidental contact while allowing for easy visual inspection of connections.

Specifications

• Manufacturer: TEKNOMEGA
• Type: RPQ125-06
• Nominal Current (In): 125 A (at 40 deg C)
• Insulation Voltage (Ui): 500 VAC
• Peak Short-circuit Current (Ipk): 18 kA
• Short-time Withstand Current (Icw): 4.2 kA
• Standard Compliance: EN 60947-1
• Mounting: 35mm DIN Rail
• Housing Material: Self-extinguishing Polyamide PA6.6 (UL94-V0)

Label Info

• Wire Section (1.5-6mm2): Input or Output
• Wire Section (6-16mm2): Input or Output
• Wire Section (10-35mm2): Input or Output

Application

This distribution block is ideal for applications in industrial automation, machine building, power distribution panels, and HVAC systems where a main power line needs to be split into several smaller circuits safely and efficiently.

Country of Origin

Made in Italy.

CO2 Impact

Opting for this pre-owned component avoids approximately 8 kg of CO2 emissions compared to a new one, contributing to a more sustainable industrial environment.

Availability

This item is in stock and available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The recommended tightening torque varies by terminal size. For the largest terminals (10-35mm2), it is 3 Nm. For medium terminals (6-16mm2), it is 2 Nm, and for the smallest (1.5-6mm2), it is 1.2 Nm. Always refer to the official datasheet for precise values to ensure a secure connection.

Yes, the RPQ125-06 is designed for quick and easy mounting on a standard 35mm DIN rail (TH 35), which is common in most industrial control cabinets.

The main body is made of self-extinguishing polyamide (PA6.6) with a V0 rating according to UL 94, providing excellent insulation and fire resistance. The transparent cover is made of polycarbonate.
