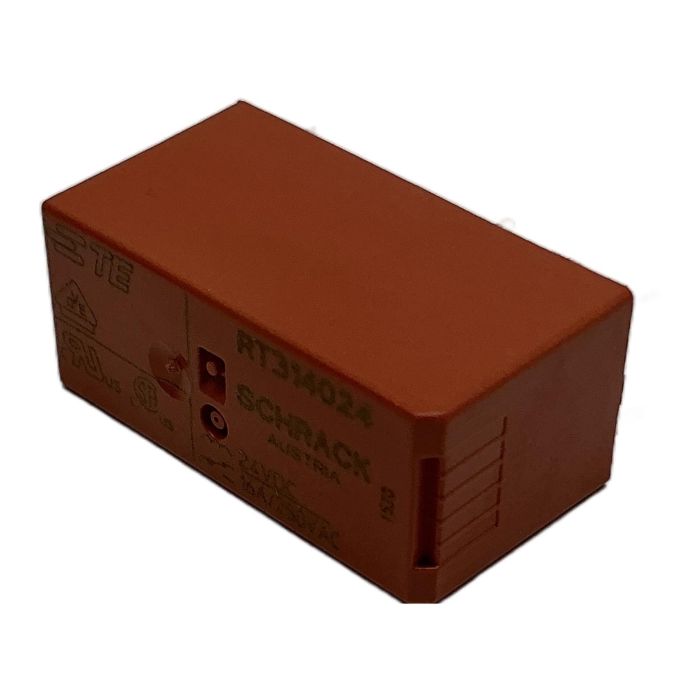

TE Connectivity RT314024 Power Relay

Description

The TE Connectivity RT314024 is a high-quality PCB power relay from the renowned Schrack series. Engineered for reliability, it features a 24VDC coil and is capable of switching loads up to 16A at 250VAC. Its compact design and through-hole mounting make it an ideal choice for a wide range of applications, including industrial control panels, automation systems, and HVAC equipment.

Specifications

• Manufacturer: TE Connectivity
• Brand: Schrack
• Model: RT314024
• Coil Voltage: 24VDC
• Contact Configuration: 1 Form C (SPDT)
• Contact Current Rating: 16A
• Contact Voltage Rating: 250VAC
• Mounting Style: PCB Through-Hole

Label Info

• Type: RT314024
• Brand: SCHRACK
• Origin: AUSTRIA
• Coil: 24VDC
• Rating: 16A/250VAC

Application

This power relay is commonly used in boiler control, timers, garage door controls, POS automation, and interface modules. Its robust design ensures long-term performance in demanding environments.

Country of Origin

This product is made in Austria.

CO2 Impact

By purchasing this reused component, you are helping to avoid approximately 0.6 kg of CO2 emissions compared to manufacturing a new one. This saving is equivalent to charging a smartphone 72 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

According to the official TE Connectivity datasheet, the nominal coil resistance for the 24VDC version (RT314024) is approximately 1440 Ohms.

The standard version of the RT1 series relay is flux-proof but not sealed for immersion cleaning. For applications requiring board washing, a sealed version should be considered.

Yes, but the DC rating is different from the AC rating. The datasheet specifies DC load limits, which are typically much lower due to the difficulty of extinguishing a DC arc. For example, it might be rated for 16A at 30VDC for a resistive load. Always consult the datasheet for specific DC load curves.
