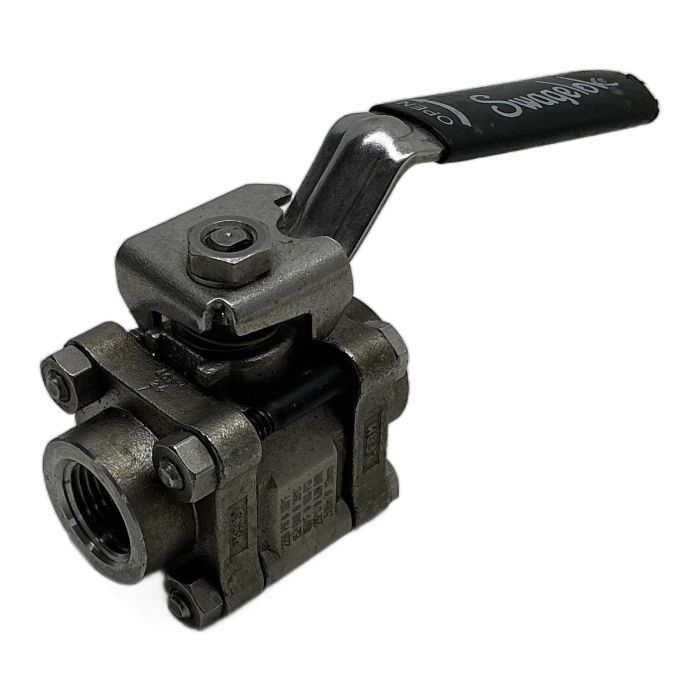

Swagelok SS-63TF8 3-Piece Stainless Steel Ball Valve

Description

The Swagelok SS-63TF8 is a high-performance 60 Series 3-piece ball valve designed for general service and instrumentation applications. Its robust 316 stainless steel construction ensures excellent durability and corrosion resistance. The 'swing-out' body design simplifies maintenance, allowing for in-line replacement of seats and seals without removing the entire valve. This valve offers reliable, leak-tight shutoff in demanding fluid systems.

Specifications

• Manufacturer: Swagelok
• Model: SS-63TF8
• Series: 60 Series
• Body Material: 316 Stainless Steel (Cast Grade CF3M)
• End Connection Type: Female NPT
• End Connection Size: 1/2 inch
• Orifice Diameter: 13 mm (0.51 in)
• Maximum Pressure: 2200 PSI (152 bar) at 100 deg F (38 deg C)
• Temperature Range: up to 450 deg F (232 deg C) at 100 PSI (6.89 bar)
• Handle Type: Lever, Quarter-Turn

Label Info

• Model: SS-63TF8
• Material: CF3M
• Pressure Rating: 2200 PSI @ 100F / 152 BAR @ 38C

Application

This valve is ideal for use in various industries including chemical processing, oil and gas, power generation, and general industrial fluid systems where reliable flow control of gases or liquids is required.

Country of Origin

Manufactured in the USA.

CO2 Impact

Opting for this pre-owned component saves approximately 2.0 kg of CO2 compared to manufacturing a new one, equivalent to the emissions of driving a car for 10 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The three-piece body design allows the center section of the valve, which contains the ball, stem, and seats, to be easily removed for maintenance or seat replacement without disturbing the end connections. This 'swing-out' capability significantly reduces downtime.

CF3M is the cast equivalent of 316L (Low Carbon) stainless steel. It offers excellent corrosion resistance, particularly against chlorides and acids, making it suitable for a wide range of process fluids and harsh environments.

Yes, the seats are replaceable. The standard configuration for the 60 Series valves like the SS-63TF8 uses reinforced PTFE (Polytetrafluoroethylene) seats, which provide a wide temperature range and excellent chemical compatibility. Other seat materials may be available for specific applications.
