Sumitomo CHHMS2-6130-51 Geared Motor

Description

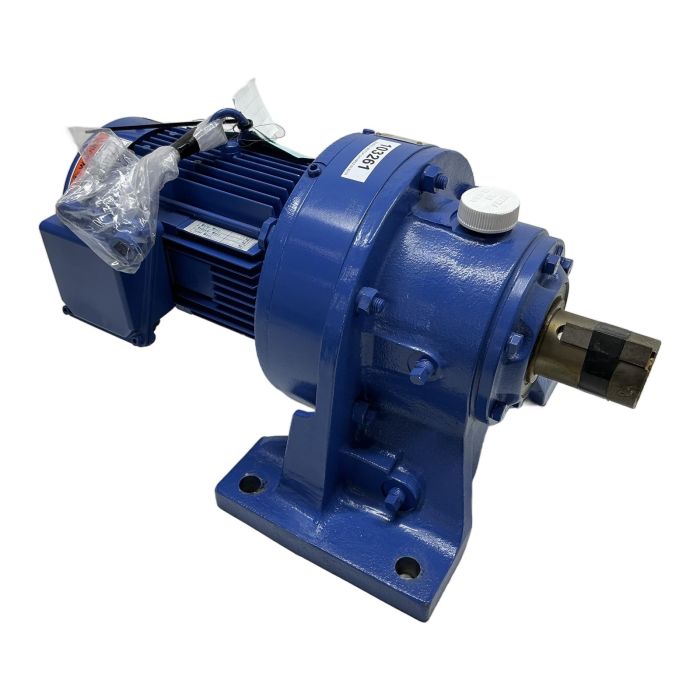

This is a Sumitomo Cyclo Drive geared motor, model CHHMS2-6130-51. It features a powerful 1.5 kW 3-phase induction motor coupled with a durable Cyclo gearbox with a 51:1 reduction ratio. This foot-mounted unit is designed for horizontal operation and is renowned for its high reliability and shock resistance, making it ideal for demanding industrial applications.

Specifications

• Manufacturer: Sumitomo
• Model: CHHMS2-6130-51
• Product Type: Geared Motor
• Input Power: 1.5 kW
• Input Speed: 1420 RPM
• Voltage: 230 / 400V AC
• Frequency: 50 Hz
• Phases: 3
• Gear Ratio: 51:1
• Mounting: Foot Mount, Horizontal
• Protection Rating: IP54

Label Info

• Gearbox Model: CHHMS 2-6130-51
• Gearbox Serial No.: C2G02918
• Motor Serial No.: 12G02506
• Date of Manufacture: 2012
• Total Mass: 54 kg

Application

Suitable for a variety of industrial applications requiring high torque and precise speed reduction, such as conveyors, mixers, agitators, and material handling equipment.

Country of Origin

The gearbox is manufactured in Japan by Sumitomo Heavy Industries, Ltd., and the motor is manufactured in Germany by Sumitomo (SHI) Cyclo Drive Germany, GmbH.

CO2 Impact

Opting for this pre-owned geared motor prevents the emission of approximately 162 kg of CO2, which would be generated during the production of a new unit. This saving is comparable to the emissions from driving a car for 810 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of lubricant is recommended for this CHHMS2-6130-51 Cyclo Drive?

Answer

The unit comes with a chart for recommended lubricants based on ambient temperature. For typical 0-40 deg C operation, an ISO Viscosity grade of VG220 gear oil is recommended, such as Mobil Gear 630, Shell Omala Oil 220, or equivalent high-quality EP (Extreme Pressure) gear lubricant.

Is the motor on this unit compatible with a variable frequency drive (VFD)?

Answer

Yes, this is a standard 3-phase induction motor, which is generally compatible with VFDs for speed control. However, for operation at very low speeds, ensure adequate cooling as the motor's fan becomes less effective. It is always best to consult the VFD and motor documentation for proper parameter settings.

What is the output shaft speed and torque for this geared motor?

Answer

With an input speed of 1420 RPM and a gear ratio of 51:1, the nominal output speed is approximately 27.8 RPM (1420 / 51). The output torque is not specified on the nameplate but can be calculated based on the power, speed, and efficiency of the gearbox, and it will be substantial due to the high reduction ratio.
