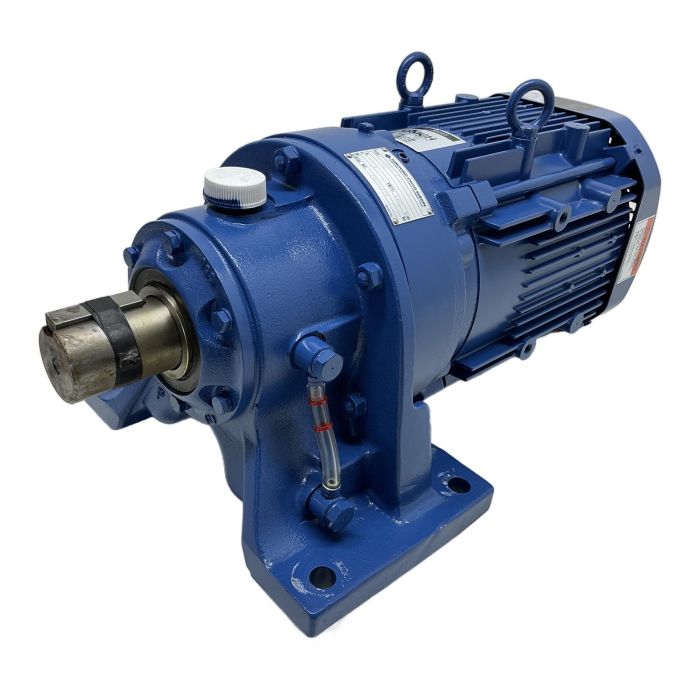

Sumitomo CHHMS6-6135-EP-35 Geared Motor

Description

This is a high-quality geared motor from Sumitomo Drive Technologies, combining a Cyclo 6000 series gearbox with a high-efficiency IE3 three-phase induction motor. This unit is designed for reliability and long service life in demanding industrial environments. The unique Cyclo gear mechanism provides high torque capacity and excellent resistance to shock loads.

Specifications

• Manufacturer: Sumitomo
• Gearbox Model: CHHMS6-6135-EP-35
• Motor Model: TK-FXP
• Power: 4.0 kW
• Input Speed (n1): 1460 r/min
• Gear Ratio (i): 35
• Voltage: 230V (Delta) / 400V (Star)
• Frequency: 50 Hz
• Current: 15.1 A / 8.70 A
• Efficiency Class: IE3
• Duty Rating: S1 (Continuous)
• Protection Class: IP55
• Mounting: Foot Mount, Horizontal

Label Info

• Gearbox S/N: CT0638858
• Motor S/N: HN1182763

Application

Ideal for applications such as conveyors, mixers, agitators, and other material handling equipment that require precise speed reduction and high torque output.

Country of Origin

Germany

CO2 Impact

Choosing this pre-owned unit over a new one saves approximately 180 kg of CO2, which is comparable to the emissions from a 900 km car journey.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The Cyclo 6000 series in this configuration is typically grease-lubricated for life. It is crucial to verify the specific lubrication requirements on the nameplate or in the user manual for the exact grease type and any potential relubrication intervals based on operating conditions.

Yes, this IE3 induction motor (Type TK-FXP) is perfectly suitable for VFD operation. Ensure the VFD is correctly parameterized for the motor's specifications (4.0 kW, 400V, 8.7A). For sustained low-speed operation, evaluate if external forced cooling is needed to prevent overheating.

The Sumitomo Cyclo design is renowned for its exceptional shock load capacity, often handling intermittent shock loads up to 500 percent of its rated torque. This durability comes from its unique gear design where multiple teeth share the load simultaneously.
