Sumitomo 0.75kW Helical Geared Motor

Description

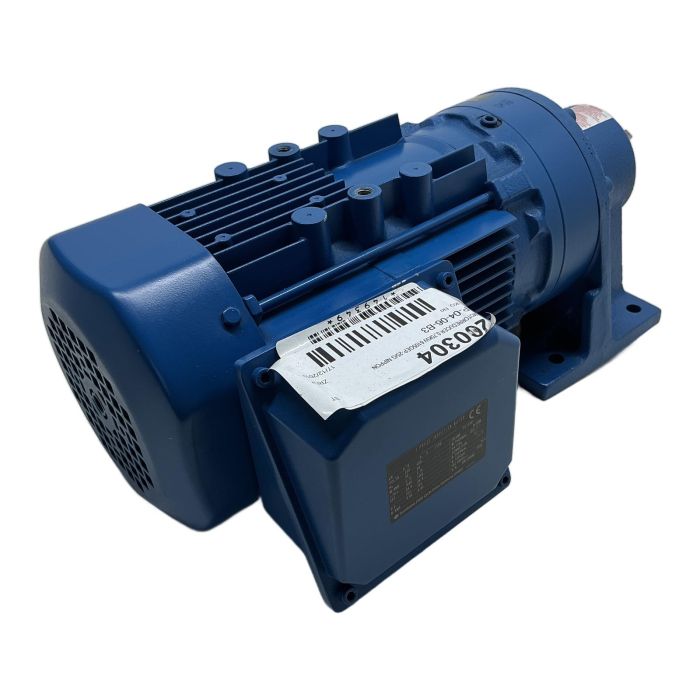

This is a CNHM1-6105GEP-25/G N80M/4 geared motor from Sumitomo Drive Technologies. This robust unit integrates a 0.75 kW, 4-pole, IE3 efficiency three-phase induction motor with a Helical Buddybox gearbox. With a gear ratio of 25:1, it delivers consistent torque and speed for a wide range of industrial machinery. The foot-mounted design ensures secure installation, and its IP55 rating protects it against dust and water ingress.

Specifications

• Manufacturer: Sumitomo Drive Technologies
• Gearbox Model: CNHM1-6105GEP-25/G
• Motor Model: TC-FXP, Frame N-80M
• Power: 0.75 kW
• Voltage: 230/400V AC
• Frequency: 50 Hz
• Phases: 3
• Poles: 4
• Input Speed: 1440 r/min
• Gear Ratio: 25:1
• Mounting: Foot Mount
• IP Rating: IP55
• Duty Cycle: S1 (Continuous)

Label Info

• Gearbox SN: DE0692988
• Motor S/N: HN1124669
• Year of Manufacture: 2017
• Lubricant: Esso Unirex N2

Application

Ideal for conveyors, mixers, agitators, and other material handling or processing equipment requiring reliable, low-speed, high-torque power transmission.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are helping to avoid the emission of approximately 65 kg of CO2, which would have been generated during the production of a new unit. This is a significant contribution to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

With an input speed of 1440 RPM and a gear ratio of 25:1, the calculated output speed is approximately 57.6 RPM.

The nameplate specifies Esso Unirex N2 grease. As a pre-owned item, it is always recommended to check the lubricant level and condition before putting the unit into service.

Yes, this is a standard three-phase induction motor and is generally suitable for VFD operation. However, it's important to ensure proper VFD parameter settings, especially regarding motor cooling at lower speeds, to prevent overheating.
