Stromag Brake Rectifier and Supply Unit

Description

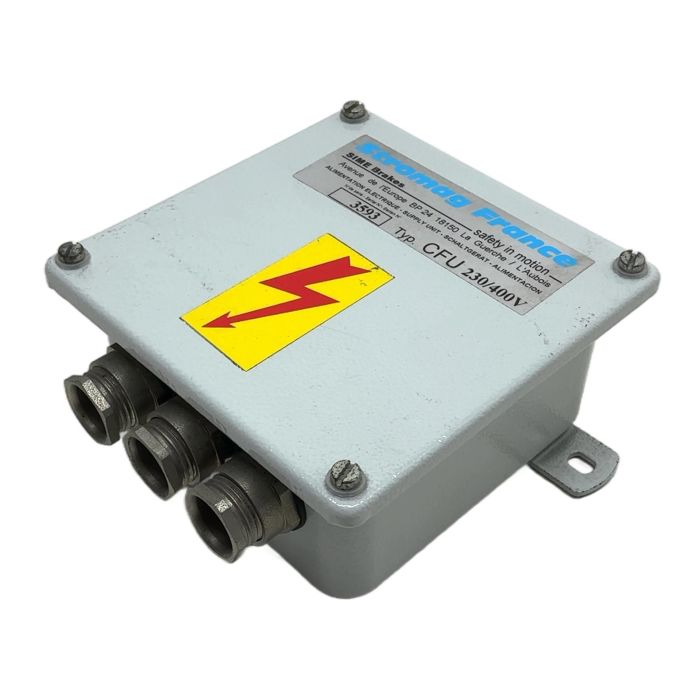

This is a robust brake rectifier, model CFU 230/400V, manufactured by Stromag France. Designed specifically as a supply unit for SIME Brakes, it converts alternating current (AC) into direct current (DC) to power electromagnetic brakes reliably. Its durable metal housing with pre-installed cable glands makes it ideal for demanding industrial environments. This unit ensures precise and safe operation of braking systems in various machinery.

Specifications

• Manufacturer: Stromag
• Model: CFU
• Input Voltage: 230/400V AC
• Function: AC to DC Rectifier / Supply Unit
• Application: Electromagnetic Brakes (e.g., SIME Brakes)
• Enclosure Material: Metal

Label Info

• Part Number: 947-07490
• Serial Number: 3593
• Date of Fabrication: Week 35, 2010

Application

This power supply unit is essential for industrial automation systems that utilize electromagnetic brakes, such as on conveyor belts, cranes, hoists, and machine tools, to ensure rapid and safe stopping of motors.

Country of Origin

Made in France.

CO2 Impact

Opting for this pre-owned unit saves an estimated 48 kg of CO2 compared to manufacturing a new one. This is comparable to the CO2 absorption of 2 mature trees in a year. Your choice supports a circular economy and reduces industrial waste.

Availability

This unit is in stock and ready for immediate dispatch. It is a used item but has been tested for functionality. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the primary function of the Stromag CFU 230/400V unit?

Its primary function is to act as a rectifier, converting the incoming AC voltage (either 230V or 400V) into a DC voltage suitable for energizing and controlling an electromagnetic industrial brake.

Typically, voltage selection is made by connecting the AC supply to specific terminals inside the unit. It is crucial to consult the product's wiring diagram to ensure the correct connections are made for your available supply voltage to prevent damage to the unit or the brake.

Units like this are often half-wave rectifiers. For a half-wave rectifier, the DC output voltage is approximately 0.45 times the AC input voltage (e.g., 230V AC input yields about 103V DC). For a full-wave rectifier, it would be about 0.90 times the AC input. The exact configuration should be verified based on the brake's requirements.
