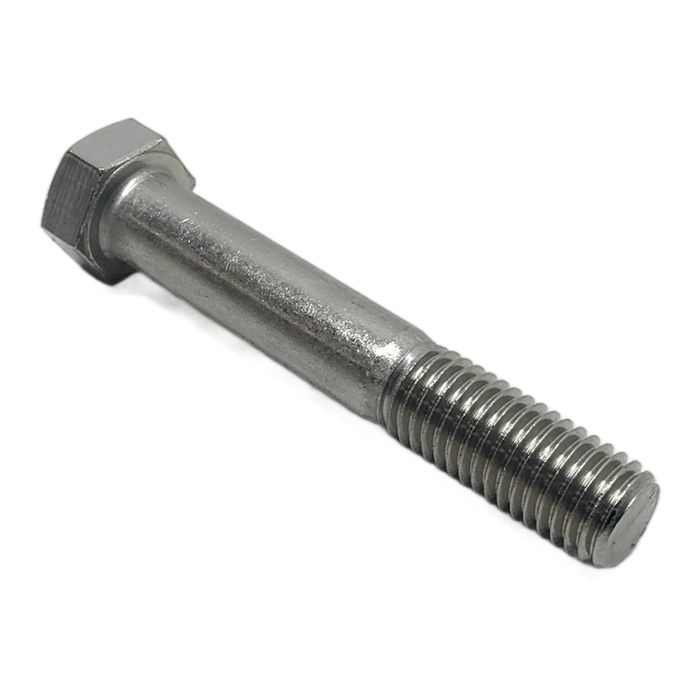

Standardized M18x110mm Hexagon Head Bolt

Description

This is a standard M18 hexagon head bolt with a length of 110 mm. It is manufactured according to DIN 931 and ISO 4014 standards, ensuring interchangeability and consistent performance. The partial thread design is ideal for applications requiring a strong, unthreaded shank for shear load resistance. Made from A2 grade stainless steel, it provides excellent resistance to corrosion in various environments.

Specifications

• Standard: DIN 931 / ISO 4014
• Type: Hexagon Head Bolt, Partially Threaded
• Material: Stainless Steel A2 (AISI 304)
• Diameter (d): M18
• Length (l): 110 mm
• Wrench Size (s): 27 mm

Label Info

• Description: RVS A2 BOUT D931/I4014
• Size: M18X110
• Reference Number: 08210329

Application

Suitable for a wide range of fastening applications in machinery, construction, automotive, and general engineering where good corrosion resistance is required.

CO2 Impact

By purchasing this reused component, you contribute to a circular economy and help avoid approximately 0.57 kg of CO2 emissions associated with the production of a new steel bolt. This saving is equivalent to charging a smartphone around 68 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between DIN 931 and ISO 4014?

ISO 4014 is the modern international standard that has largely replaced the German DIN 931 standard for partially threaded hexagon bolts. While there are minor dimensional differences in some sizes, for most practical purposes, including M18, they are considered interchangeable.

A2 (also known as AISI 304) stainless steel offers good corrosion resistance in non-chlorine environments. It is ideal for general construction, food processing equipment, automotive applications, and machinery assembly where it is exposed to freshwater and normal atmospheric conditions. It is not recommended for marine or saltwater environments.

An M18 hexagon head bolt according to DIN 931 / ISO 4014 standards requires a 27 mm wrench or socket.
