• SIRCO M1 3X16A TOGGLE: COMMERCE
• Effective date: 2006-04-13
• Country of origin: CN
• Discount Policy: 1CA12
• Discount Policy Label: SIRCO M1 to M3
• Length of the product unit: 0.068
• Width of the product unit: 0.045
• Depth of the product unit: 0.064
• Weight: 0.22
• ETIM - ELECTRICAL CHARACTERISTICS:
  • Max. rated operation voltage Ue AC [V]: 690
  • Rated operating voltage [V]: 400..690
  • Rated permanent current Iu [A]: 16
  • Rated permanent current at AC-23, 400 V [A]: 16
  • Rated permanent current at AC-21, 400 V [A]: 16
  • Rated short-time withstand current lcw [kA]: 1.26
  • Rated operation power at AC-23, 400 V [kW]: 7.5
  • Switching power at 400 V [kW]: 7.5
  • Conditioned rated short-circuit current Iq [kA]: 50
  • Number of poles: 3
• ETIM - MECHANICAL CHARACTERISTICS:
  • Suitable for floor mounting: No
  • Suitable for front mounting 4-hole: No
  • Suitable for front mounting centre: No
  • Suitable for distribution board installation: Yes
  • Suitable for intermediate mounting: Yes
  • Colour control element: Black
  • Degree of protection (IP), front side: IP20
• ETIM - TECHNICAL FEATURES:
  • Version as main switch: Yes
  • Version as maintenance-/service switch: Yes
  • Version as safety switch: Yes
  • Version as emergency stop installation: Yes
  • Version as reversing switch: No
  • Number of switches: 1
  • Motor drive optional: No
  • Motor drive integrated: No
  • Voltage release optional: No
  • Device construction: Built-in device fixed built-in technique
  • Type of control element: Toggle
  • Interlockable: Yes
  • Type of electrical connection of main circuit: Screw connection

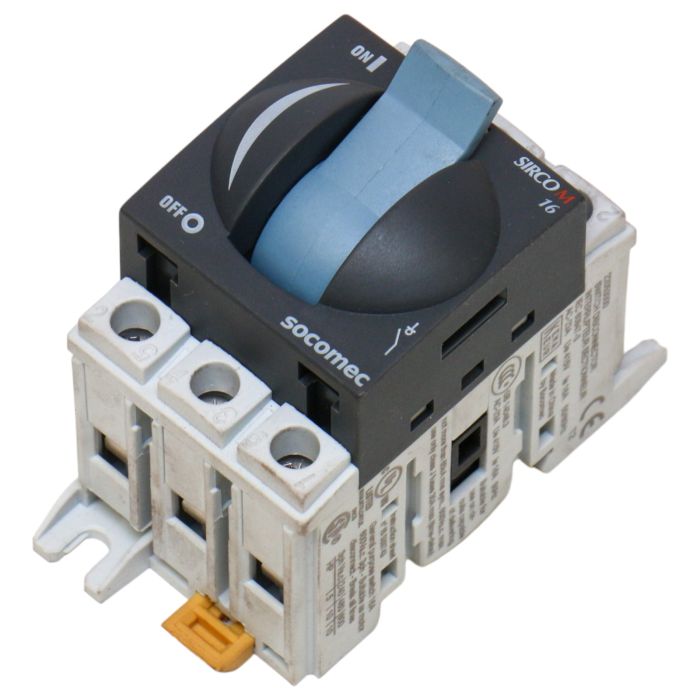

Sirco M16 22053000 Socomec is a reliable and high-quality industrial switch suitable for various industrial applications. This product can be purchased at PLC2Day.
