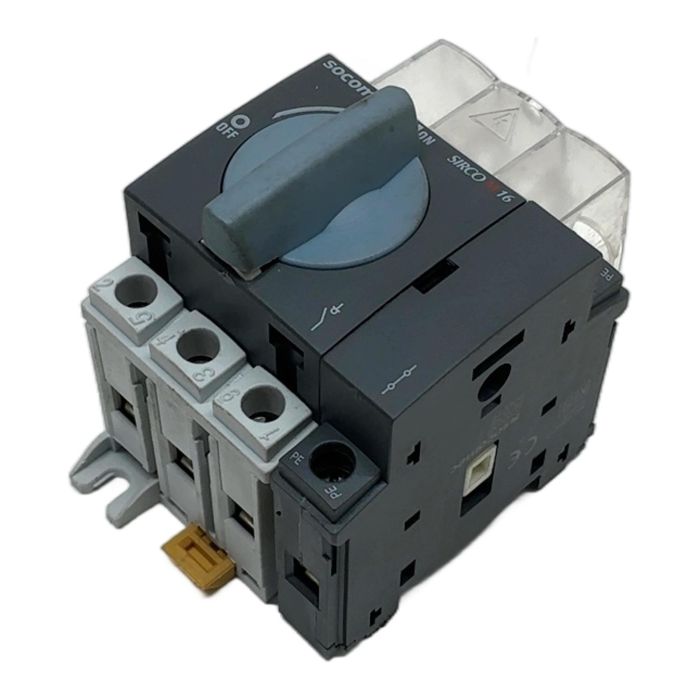

Socomec SIRCO M 16 3P+PE Load Break Switch

Description

This is a SIRCO M series modular load break switch from Socomec, part number 22009005. It is designed for use as a main switch or for manual circuit isolation in a wide range of industrial applications. With a rated current of 16A and a 3-pole plus protective earth configuration, it provides a safe and reliable means of disconnecting power for maintenance or emergency stop functions. The compact design allows for easy installation on a DIN rail, and the rotary handle provides a clear and unambiguous indication of the switch's status (ON/OFF).

Specifications

• Manufacturer: Socomec
• Series: SIRCO M
• Type: Load Break Switch / Switch Disconnector
• Model: SIRCO M 16
• Part Number: 22009005
• Rated Operational Current (AC-22A): 16 A
• Number of Poles: 3P + PE
• Mounting: DIN Rail
• Actuator: Rotary Handle
• Standard Compliance: IEC 60947-3

Label Info

• Brand: socomec
• Model: SIRCO M 16
• Part No: 22009005
• Thermal Current (Ith): 63A
• Standard: IEC 60947-3
• Certification: CE, KEMA KEUR

Application

The Socomec SIRCO M 16 is ideal for local isolation of industrial machinery, control panels, distribution boards, and HVAC systems. It serves as a reliable main switch for small to medium-sized equipment, ensuring the safety of personnel during maintenance and service operations.

Country of Origin

This product is typically manufactured in Italy.

CO2 Impact

By purchasing this pre-owned switch, you help avoid the emission of approximately 8.0 kg of CO2. This saving is equivalent to the energy needed to drive a car for 40 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'SIRCO M 16' indicates the specific model with a rated operational current of 16 Amperes under AC-22A/AC-23A conditions. The 'Ith 63A' refers to the conventional free air thermal current of the switch's main body or frame, meaning the housing can handle up to 63A thermally without damage. However, the operational rating for this specific part number is 16A.

Yes, the SIRCO M series is typically rated for utilization category AC-23A, which makes it suitable for switching motor loads or other highly inductive loads. Always verify the specific motor's power and inrush current against the switch's datasheet for your application voltage.

Yes, the SIRCO M series is modular. You can typically add auxiliary contact blocks (1 NO, 1 NC, or combinations) to the side of the switch body for status signaling and interlocking purposes. These are usually sold separately.
