Product Details

Description

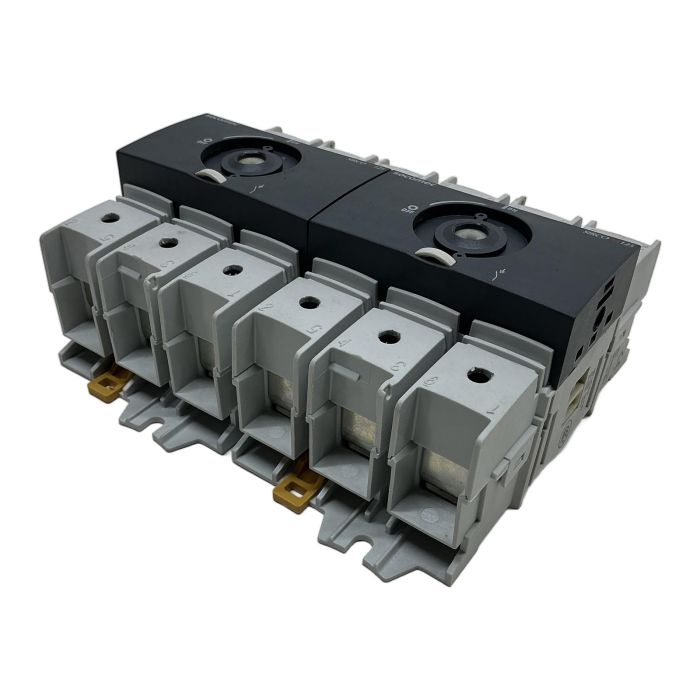

This is a robust Socomec SIRCO M 6-pole load break switch, constructed from two mechanically coupled 3-pole 22003011 units. With a nominal current rating of 125A, this switch is engineered for safely isolating machinery and electrical panels. Its modular design and compliance with IEC 60947-3 ensure high performance and reliability for demanding industrial applications.

Specifications

• Manufacturer: Socomec
• Series: SIRCO M
• Part Number (per unit): 22003011
• Configuration: 6-Pole (2 x 3-Pole)
• Rated Operational Current (Ie): 125 A
• Rated Operational Voltage (Ue): 690 V AC
• Utilization Category AC-23A: 125A at 415V
• Frequency: 50/60 Hz
• Mounting: DIN Rail
• Operation: Direct Front Rotary Handle

Label Info

• Model: SWITCH DISCONNECTOR
• Standard: IEC 60947-3 / GB 14048.3
• AC-21A Ue: 690V
• AC-22A Ue: 415V, Ie: 125A, 50Hz
• AC-23A Ue: 415V, Ie: 125A, 50/60Hz

Application

Ideal for use as a main switch, safety switch, or disconnect switch in industrial control panels, distribution boards, and machine building to provide reliable power isolation.

Country of Origin

Manufactured in France.

CO2 Impact

By choosing this pre-owned component, you are saving approximately 40 kg of CO2 emissions. This is equivalent to the emissions from a 200-kilometer car journey. A sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Reduce downtime and keep your production line running. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
Can this 6-pole switch be separated back into two independent 3-pole switches?

Answer

Yes, the Socomec SIRCO M series is modular. The mechanical coupling between the two 3-pole units can typically be removed, allowing them to be used as two separate 3-pole switch disconnectors.

Answer

This switch is designed for direct front operation via the built-in rotary knob. For panel door operation, Socomec offers external handles and shaft extension kits (sold separately) that are compatible with the SIRCO M series.

Answer

For the SIRCO M 125A model, the recommended tightening torque for the M8 power terminal screws is typically between 8 and 10 Newton-meters (Nm) to ensure a secure and reliable electrical connection. Always refer to the manufacturer's installation manual for precise values.
