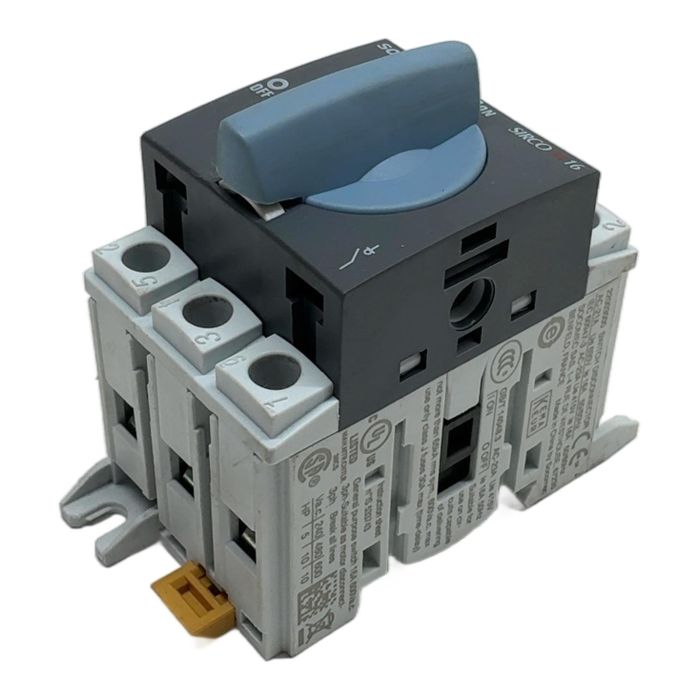

Socomec SIRCO M 16A 3-Pole Changeover Switch

Description

The Socomec 22003000 is a high-quality SIRCO M series switch disconnector. This manually operated changeover switch is designed for making and breaking circuits under load, providing safety isolation for any low voltage circuit. Its compact and modular format makes it suitable for a wide range of applications, especially in industrial control panels and distribution boards. This 3-pole version is rated for 16A, ensuring reliable performance.

Specifications

• Manufacturer: Socomec
• Series: SIRCO M
• Part Number: 22003000
• Number of Poles: 3
• Rated Current (Ie): 16A
• Rated Operational Voltage (Ue): up to 690V AC
• Utilization Category (IEC 60947-3): AC-23A at 415V
• Mounting Type: DIN Rail

Label Info

• IEC 60947-3: AC-21A Ue 690V Ie 16A, AC-23A Ue 415V Ie 16A
• UL Listed: General purpose switch 16A 600Va.c., 3ph
• HP Ratings: 5 HP at 240V, 10 HP at 480V, 10 HP at 600V

Application

This switch is ideal for use as a main switch, emergency stop, or for source inversion (changeover) in industrial machinery, HVAC systems, and power distribution panels where reliable manual control is required.

Country of Origin

Made in China by Socomec, a French company.

CO2 Impact

By purchasing this reused component, you are contributing to a circular economy and have helped avoid approximately 7.0 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

AC-21A is for switching of resistive loads, including moderate overloads. AC-23A is for switching of motor loads or other highly inductive loads, which is a more demanding application. This switch is rated for both, highlighting its versatility.

Yes, the SIRCO M series is designed to be modular. It can be equipped with various accessories, such as auxiliary contacts, terminal shrouds, and different types of handles, which must be ordered separately.

According to the manufacturer's documentation, the recommended tightening torque for the main terminals is typically between 1.2 and 1.5 Nm. Always verify with the official instruction sheet (IS 533743) before installation.
