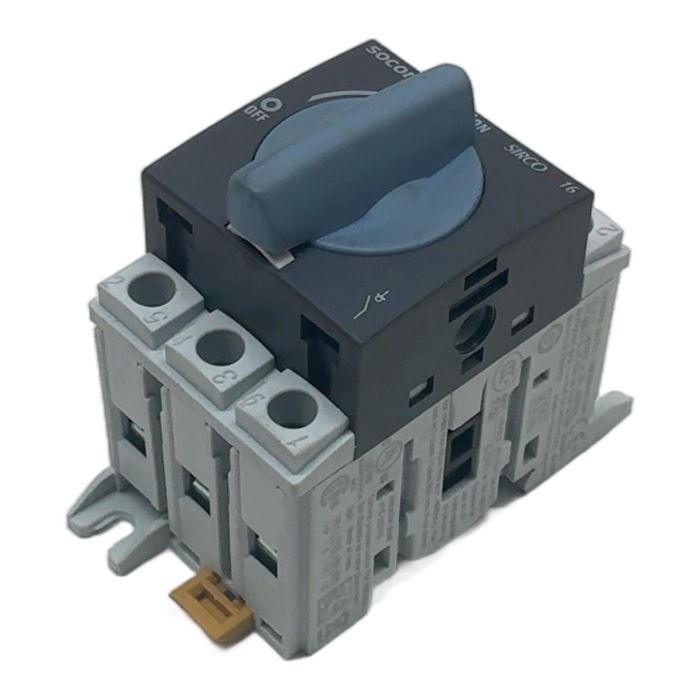

Socomec SIRCO M 16A 3-Pole Switch Disconnector

Description

The Socomec 22003000 is a modular switch disconnector from the SIRCO M series, engineered for safety and reliability in low-voltage electrical installations. This 3-pole device provides dependable on-load breaking and making, serving as an excellent main switch or motor disconnect. Its compact design allows for easy integration into control panels via DIN rail or direct panel mounting.

Specifications

• Manufacturer: Socomec
• Series: SIRCO M
• Part Number: 22003000
• Rated Operational Current (Ie): 16A
• Rated Operational Voltage (Ue): up to 690V AC
• Number of Poles: 3
• Mounting: DIN Rail or Panel Mount
• Standards: IEC 60947-3, UL, CSA

Label Info

• AC-21A: Ue 690V, Ie 16A, 50/60Hz
• AC-23A: Ue 415V, Ie 16A, 50/60Hz
• UL Listed: General purpose switch 16A 600V AC
• Motor Rating: 5 HP at 240V, 10 HP at 480/600V

Application

Ideal for use as a local safety isolation switch, main switch in distribution boards, or as a motor disconnect switch in various industrial machinery and commercial building applications.

Country of Origin

This product is designed by Socomec in France and manufactured in China.

CO2 Impact

Opting for this component helps avoid the emission of approximately 4.8 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the carbon sequestered by a young tree over several months.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Can this switch be used for motor control applications?

Answer:
Yes, the Socomec SIRCO M 22003000 is UL listed and rated as suitable for motor disconnect applications. According to the label, it can handle up to 10 HP at 480/600V AC.

What type of mounting is this switch designed for?

Answer:
This switch is designed for versatile mounting. It features integrated clips for standard 35mm DIN rail mounting and also has provisions for direct panel mounting with screws.

What is the short-circuit withstand capability of this device?

Answer:
The label indicates it is suitable for use on circuits capable of delivering up to 65kA rms symmetrical current at 600V AC, provided it is protected by Class J fuses with a maximum rating of 30A (time-delay).
