SNR 3208.B.G15 Double Row Angular Contact Ball Bearing

Description

This is a high-quality double row angular contact ball bearing, model 3208.B.G15, manufactured by SNR. It is designed to accommodate combined radial and axial loads, providing stiff bearing arrangements. This bearing is suitable for applications where rigid axial guidance is required.

Specifications

• Manufacturer: SNR
• Type Number: 3208.B.G15
• Bearing Type: Double Row Angular Contact Ball Bearing
• Bore Diameter (d): 40 mm
• Outer Diameter (D): 80 mm
• Width (B): 30.2 mm
• Contact Angle: 30 degrees (Suffix B)
• Clearance: Reduced axial internal clearance (Suffix G15)
• Sealing: Open (no seals)

Label Info

• Brand: SNR
• Model: 3208.B.G15
• EAN: 3413520095963

Application

These bearings are ideal for use in gearboxes, pumps, and machine tool spindles where precision and load-bearing capacity are crucial.

Country of Origin

Made in France.

CO2 Impact

By purchasing this reused bearing, you are saving approximately 1.26 kg of CO2 compared to a new production. This is equivalent to the emissions from driving a car for over 6 kilometers.

Availability

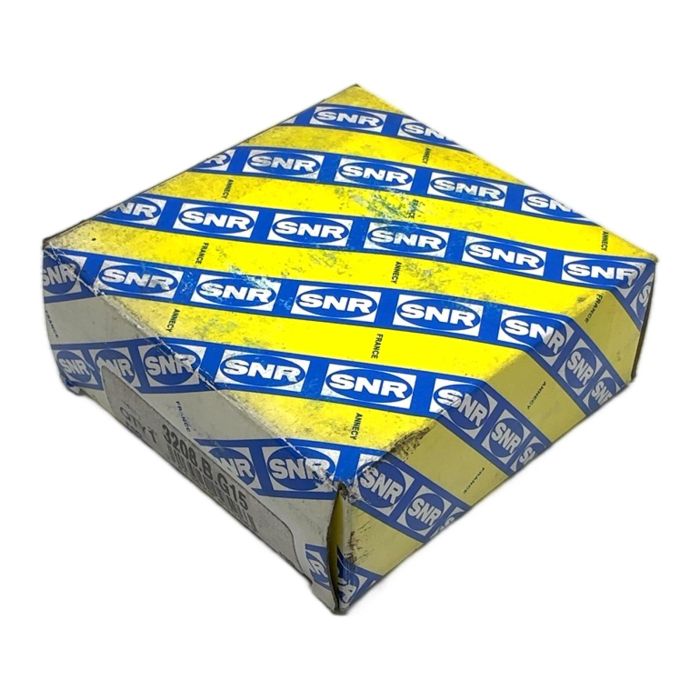

This item is a New Old Stock (NOS) product in its original, sealed inner packaging. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the 'B.G15' suffix signify on this SNR 3208 bearing?

The 'B' indicates a 30-degree contact angle, which is standard for this type of bearing, allowing it to handle significant axial loads. The 'G15' is an SNR-specific designation for a reduced axial internal clearance group, which provides higher running accuracy and rigidity, essential for precision applications like machine tool spindles.

This bearing is an open type and is typically shipped with a corrosion-preventive coating, not a full operational lubricant charge. It must be properly lubricated with grease or oil according to the application's requirements before being put into service.

Yes, the basic dimensions (40x80x30.2mm) are standardized. However, you must ensure the 'B' contact angle (30 deg) and the 'G15' special clearance are compatible with your application's requirements. If your original bearing had a standard clearance (like CN), using a G15 might result in improper preload if not installed correctly.
