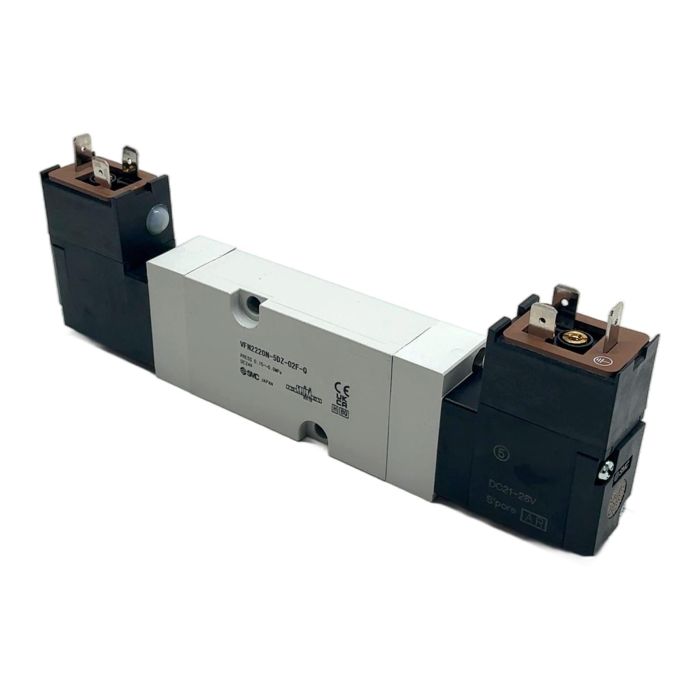

SMC VFN2220N-5DZ-02F-Q Pneumatic Solenoid Valve

Description

This is a high-quality 5-port solenoid valve, model VFN2220N-5DZ-02F-Q, from the renowned manufacturer SMC. It is a double solenoid, 2-position valve designed for reliable control of pneumatic systems. Operating on a standard 24V DC supply, it is suitable for a wide range of industrial automation tasks.

Specifications

• Manufacturer: SMC
• Series: VFN2000
• Model: VFN2220N-5DZ-02F-Q
• Type: 5-Port Solenoid Valve
• Actuation: Double Solenoid
• Voltage: 24V DC
• Operating Pressure Range: 0.15 to 0.9 MPa
• Port Size: Rc 1/4 (BSPT)
• Seal Material: Metal Seal
• Electrical Connection: DIN Terminal with Indicator Light and Surge Suppressor

Label Info

• VFN2220N-5DZ-02F-Q
• Coil Voltage: DC21-26V

Application

Ideal for controlling pneumatic cylinders, actuators, and other pneumatic components in manufacturing lines, robotics, and automated machinery where precise and reliable air flow control is essential.

Country of Origin

Made in Japan.

CO2 Impact

Choosing this reused component over a new one avoids approximately 12.0 kg of CO2 emissions, contributing to a more sustainable industrial environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What type of electrical connector is required for this VFN2220N-5DZ-02F-Q valve?

This valve uses a DIN terminal connector, as indicated by the "5D" in the model number. It comes with a light and surge voltage suppressor for added protection and visual status indication.

No, this specific model is designed for positive pressure applications, with a minimum operating pressure of 0.15 MPa (1.5 bar). It is not rated for vacuum service.

This model is the -Q version, which has a metal seal. Metal seals typically offer a longer service life and are more resilient to wear and harsh environments compared to rubber seals. However, they may have slightly higher internal leakage rates than new rubber seals.
