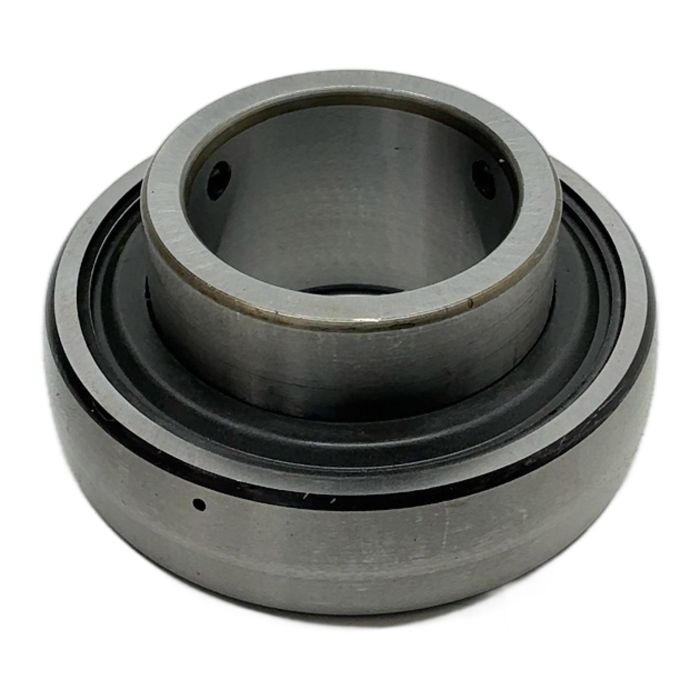

SKF YAT 208 Insert Bearing

Description

The SKF YAT 208 is a high-quality insert bearing, part of the Y-bearing series. It is designed for simple and reliable mounting. With its grub screw locking mechanism, it provides a secure fit on the shaft. The bearing is sealed on both sides to retain lubricant and protect against contaminants, ensuring a long service life in demanding industrial environments.

Specifications

• Manufacturer: SKF
• Type: YAT 208
• Bore Diameter: 40 mm
• Outside Diameter: 80 mm
• Width (Outer Ring): 49.2 mm
• Locking Method: Grub screws
• Sealing: Integrated seals on both sides

Label Info

• Brand: SKF
• Model: YAT 208

Application

This insert bearing is commonly used in applications such as conveyor systems, agricultural machinery, food and beverage processing, and packaging equipment where shafts need to be supported simply and economically.

Country of Origin

Made in Italy.

CO2 Impact

Opting for this reused bearing over a new one prevents the emission of approximately 1.22 kg of CO2, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The recommended tightening torque for the grub screws on an SKF YAT 208 bearing is typically 16.5 Nm. Using a calibrated torque wrench is essential to ensure a secure lock without damaging the screw or the inner ring.

Yes, SKF Y-bearings like the YAT 208 are supplied pre-filled with a high-quality grease and are sealed for life. They are ready to be mounted right out of the box and generally do not require initial lubrication unless specified for a particular application.

Yes, the YAT 208 has a spherically ground outside surface that allows it to accommodate initial static misalignment of the shaft relative to the housing, typically up to 5 degrees, without affecting its performance.
