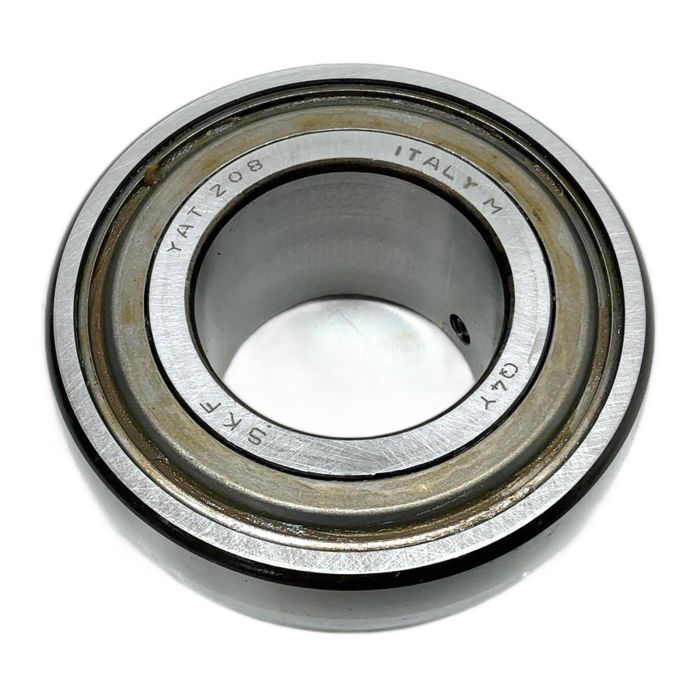

SKF YAT 208 Insert Bearing

Description

The SKF YAT 208 is a high-performance insert bearing, also known as a Y-bearing, designed for reliable operation in a wide range of industrial applications. It features a spherical outer ring, which allows it to accommodate initial static misalignment when mounted in a suitable housing. This bearing is equipped with set screw locking, providing a simple yet secure method for fixing it to the shaft.

Specifications

• Manufacturer: SKF
• Model: YAT 208
• Bore Diameter: 40 mm
• Outer Diameter: 80 mm
• Width (Inner Ring): 49.2 mm
• Locking Mechanism: Set Screw Locking
• Sealing: Standard seals on both sides

Label Info

• Brand: SKF
• Part Number: YAT 208
• EAN: 7316570902501

Application

Ideal for use in agricultural machinery, conveyor systems, food and beverage processing, packaging equipment, and textile machinery where simple and effective bearing arrangements are required.

Country of Origin

Made in Italy.

CO2 Impact

Choosing this component saves approximately 1.22 kg of CO2 compared to manufacturing a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the correct tightening torque for the set screws on the YAT 208?

For the M8x1 set screws on a YAT 208, SKF recommends a tightening torque of 16.5 Nm to ensure a secure grip on the shaft without causing damage.

Question?
Can the SKF YAT 208 be re-lubricated?

No, the YAT 208 is a sealed bearing that is lubricated for life and is not designed for re-lubrication. The factory grease fill and integral seals provide maintenance-free operation under normal conditions.

Question?
What type of housing is compatible with the YAT 208 bearing?

The YAT 208 is designed to be used with various SKF Y-bearing housing series, such as the SYJ (flanged housing) or FY (pillow block) series, that have a corresponding spherical seat to accommodate the bearing's outer ring.
