SKF Insert Bearing 45mm YAR 209-2F

Description

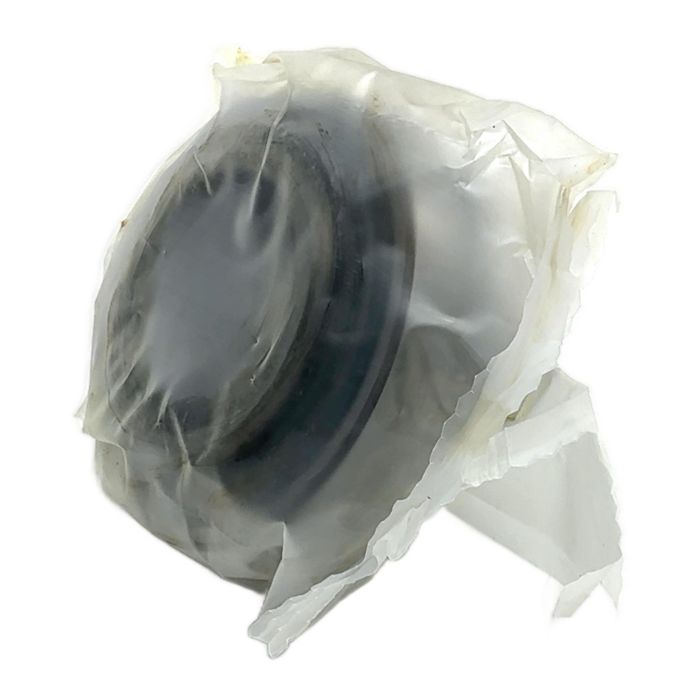

This is an SKF YAR 209-2F insert bearing, also known as a Y-bearing. It features a spherical outer diameter, allowing it to accommodate initial static misalignment when mounted in a suitable housing. This bearing is equipped with a grub screw locking system for secure attachment to the shaft.

Specifications

• Manufacturer: SKF
• Model: YAR 209-2F
• Bore Diameter (d): 45 mm
• Outer Diameter (D): 85 mm
• Inner Ring Width (B): 49.2 mm
• Locking Mechanism: Grub screw locking
• Sealing: Standard seals with flingers on both sides

Label Info

• Brand: SKF
• Type: YAR 209-2F
• Designation: GYE 45 KRRB
• Cross-reference: UC209

Application

Insert bearings like the YAR 209-2F are widely used in agricultural machinery, food and beverage processing, conveyor systems, packaging equipment, and textile machinery due to their ease of installation and reliability.

Country of Origin

This product is proudly manufactured in Italy by SKF, ensuring high-quality European engineering and production standards.

CO2 Impact

By purchasing this pre-owned bearing, you are contributing to a circular economy and have helped avoid approximately 1.38 kg of CO2 emissions compared to manufacturing a new one. This saving is comparable to driving an average car for 7 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the difference between YAR 209-2F and YAR 209-2RF?

The '2F' suffix indicates a standard seal with a flinger on both sides. The '2RF' suffix denotes SKF's more robust 'RS' seal with a plain flinger on both sides, offering superior protection against contamination. Choose based on your application's environmental conditions.

For a YAR 209-2F bearing with an M8x1 grub screw, the recommended tightening torque is 16.5 Nm. Applying the correct torque is critical to ensure a secure shaft grip without damaging the inner ring.

Yes, the SKF YAR 2 series bearings are designed to be relubricated. They come pre-filled with grease but have lubrication holes in the outer ring to allow for grease replenishment during service, extending the bearing's operational life.
