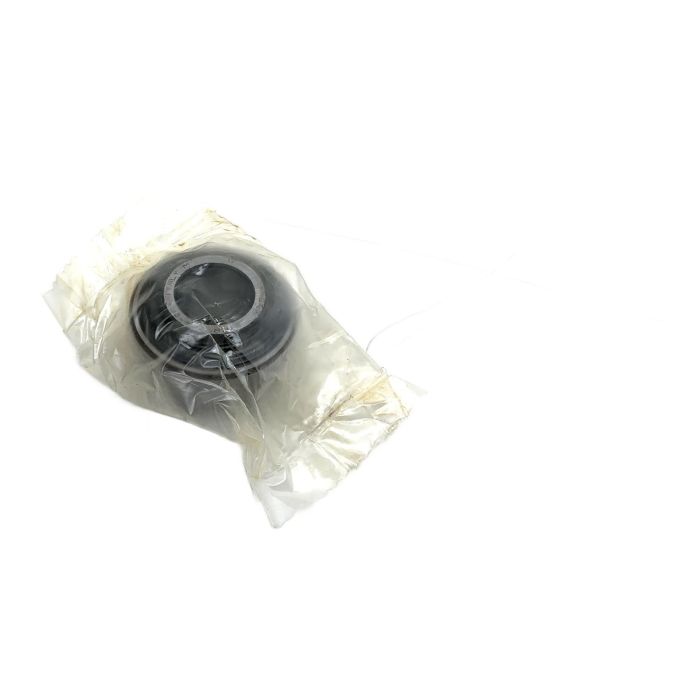

SKF YAR 204-2F Insert Bearing for Housed Units

Description

The SKF YAR 204-2F is a robust insert bearing, commonly known as a Y-bearing, designed for simple and effective mounting in various applications. It features a spherical outer surface, allowing it to accommodate initial static misalignment when fitted into a suitable housing. This bearing is equipped with set screw locking, enabling secure attachment to the shaft. Its high-quality construction ensures reliable performance and a long operational lifespan.

Specifications

• Manufacturer: SKF
• Model: YAR 204-2F
• Bore Diameter (d): 20 mm
• Outer Diameter (D): 47 mm
• Inner Ring Width (B): 31 mm
• Locking Method: Set screw locking
• Sealing: 2F - Standard seals with flingers on both sides
• Material: Bearing Steel

Label Info

• Primary Designation: YAR 204-2F
• Cross-references: GYE 20 KRRB, 1020-20G, UC204

Application

This insert bearing is widely used in applications such as agricultural machinery, conveyor systems, food and beverage processing, packaging equipment, and general industrial machinery where simple installation and reliability are paramount.

Country of Origin

Made in Italy.

CO2 Impact

Opting for this pre-owned bearing instead of a new one prevents the emission of approximately 0.24 kg of CO2, contributing to a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main application for an SKF YAR 204-2F bearing?

It is primarily used in housed bearing units for agricultural machinery, conveyors, and general industrial equipment where simplicity of mounting and misalignment compensation are key requirements.

The '2F' suffix refers to the sealing solution. It indicates a standard seal made of NBR with an additional sheet steel flinger on both sides for enhanced protection against contaminants and moisture.

This bearing utilizes a set screw locking mechanism. It has two grub screws, typically positioned 120 degrees apart in the inner ring, which are tightened to securely fasten the bearing directly onto the shaft.
