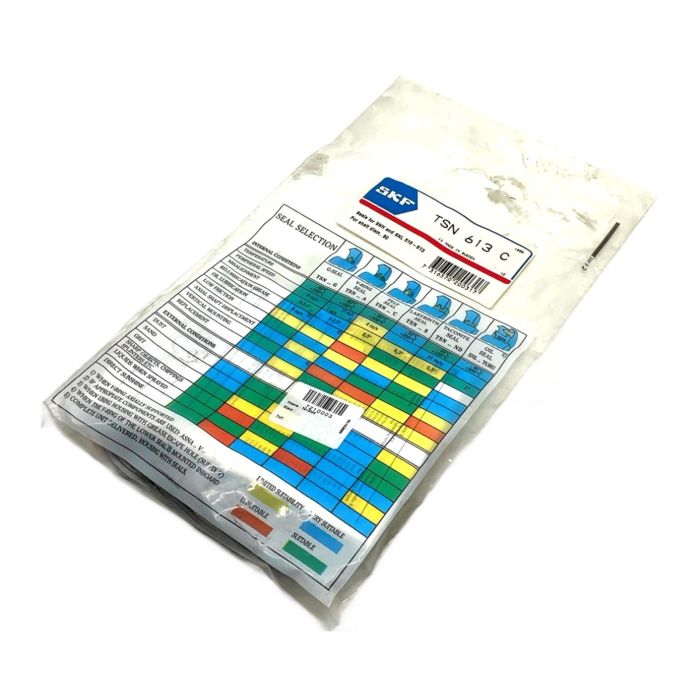

SKF TSN 613 C Four-Lip Seal for Bearing Housings

Description

The SKF TSN 613 C is a high-performance four-lip seal specifically designed for SNH and SNL 516-613 series plummer block housings. It is intended for use with shafts that have a diameter of 60 mm. This seal provides an effective barrier against solid contaminants and moisture, while also preventing lubricant leakage, thereby extending bearing service life and improving machinery reliability.

Specifications

• Manufacturer: SKF
• Type: TSN 613 C
• Product Type: Four-lip seal
• Shaft Diameter: 60 mm
• Compatible Housings: SNH 516-613, SNL 516-613
• Material: Polyurethane

Label Info

• Brand: SKF
• Model: TSN 613 C
• EAN: 7316570200317

Application

This seal is ideal for a wide range of industrial applications where plummer block housings are used, such as in conveyors, fans, and general industrial machinery, especially in environments with moderate contamination.

Country of Origin

Made in Sweden.

CO2 Impact

By purchasing this pre-owned seal, you are contributing to a circular economy and avoiding the production of a new one, which saves approximately 3.8 kg of CO2 emissions.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The TSN 613 C is supplied in strips. You must cut the strips to the correct length according to the housing size. Then, insert one strip into the bottom half of the housing seal groove and the other into the top half, ensuring a snug fit before closing the housing.

No, the TSN C series four-lip seals are designed primarily for grease lubrication. For oil lubrication, SKF recommends using different seal types, such as V-ring seals or specific taconite seals designed for oil.

The permissible peripheral speed for a TSN ... C seal depends on shaft finish and lubrication but is generally suitable for speeds up to 4 m/s. For higher speeds, alternative sealing solutions should be considered.
