SKF SY507L Pillow Block Bearing Unit

Description

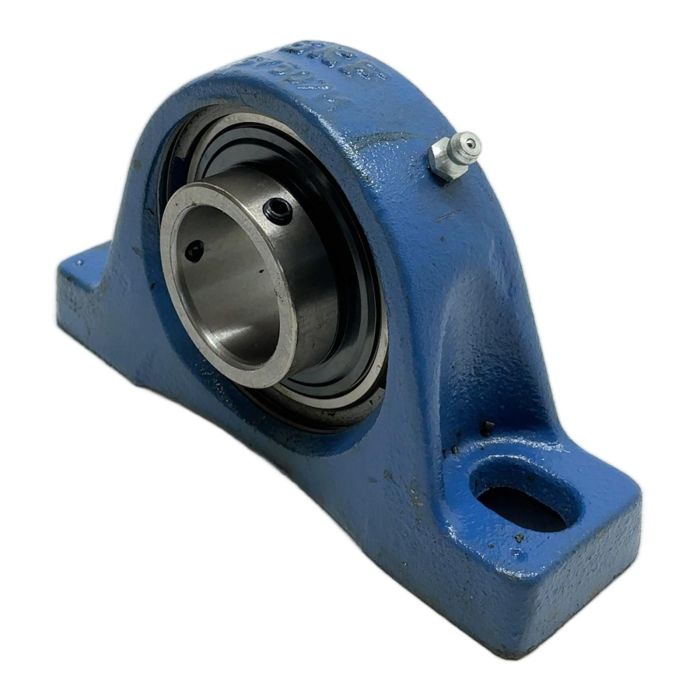

This SKF SY507L is a complete Y-bearing plummer block unit, ideal for supporting rotating shafts. The unit consists of a robust cast iron housing and a high-quality bearing insert. It features a simple set screw locking mechanism for secure attachment to the shaft and includes a grease nipple for easy relubrication, ensuring a long operational life.

Specifications

• Manufacturer: SKF
• Type Number: SY507L
• Shaft Diameter: 1-7/16 inch (36.5125 mm)
• Housing Material: Cast Iron
• Bearing Insert: YAR 207-107-2F (or equivalent)
• Locking Type: Set Screw Locking

Label Info

• Brand: SKF
• Model: SY507L
• Country of Origin: Italy

Application

These bearing units are widely used in various industrial applications, including conveyor systems, agricultural machinery, food processing equipment, and general manufacturing, where reliable shaft support is critical.

Country of Origin

This bearing unit is manufactured in Italy.

CO2 Impact

Opting for this reused bearing unit prevents the emission of approximately 3.0 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a standard car for 15 kilometers.

Availability

This is a used item in good working condition. It has been inspected and is ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the correct procedure for mounting this SY507L unit?

Answer: Ensure the shaft is clean and burr-free. Slide the unit onto the shaft and position it correctly. Secure the housing to the support surface using appropriate bolts. Finally, tighten the two set screws on the bearing's inner ring evenly to lock it onto the shaft.

Question?
What type of grease is recommended for this SKF bearing unit?

Answer: For general purpose applications, a high-quality lithium complex grease like SKF LGMT 2 or LGMT 3 is recommended. Always check your machine's specific operating conditions (speed, temperature, load) to select the optimal grease.

Question?
Can the bearing insert be replaced separately from the housing?

Answer: Yes, the bearing insert (e.g., YAR 207-107-2F) can be purchased and replaced independently of the P207 series cast iron housing. This allows for cost-effective maintenance if only the bearing is worn.
