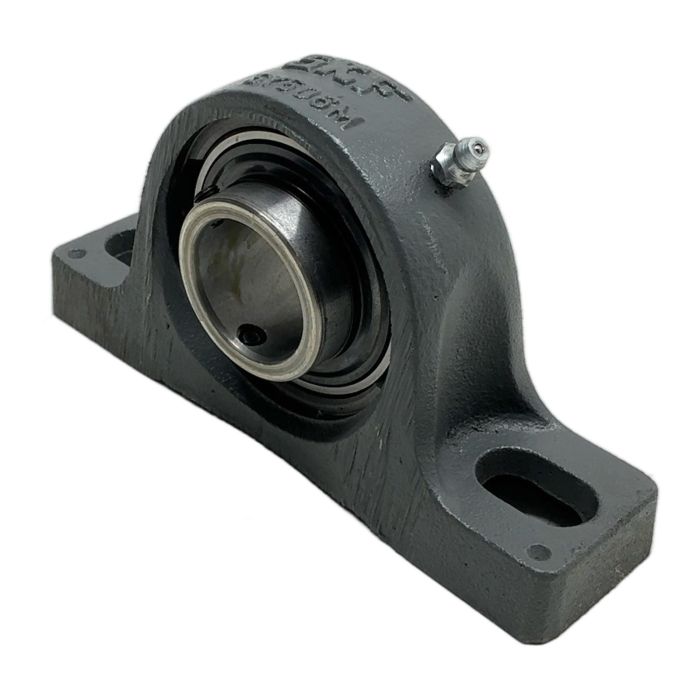

SKF SY30TF Pillow Block Bearing Unit for 30mm Shaft

Description

The SKF SY30TF is a reliable and robust Y-bearing pillow block unit designed for applications where simplicity of installation and dependability are key. It features a solid cast iron housing and a high-quality bearing insert that can accommodate initial misalignment. This unit is pre-lubricated and ready for installation.

Specifications

• Manufacturer: SKF
• Type: SY30TF
• Shaft Diameter: 30 mm
• Housing Material: Cast Iron
• Housing Designation: SY 506 M
• Bearing Insert: YAR 206-2F
• Locking Method: Set screw locking

Label Info

• Brand (Cast): SKF
• Housing Model (Cast): SY 506 M

Application

This pillow block unit is ideal for a wide range of industrial and agricultural applications, including conveyor systems, fans and blowers, food processing machinery, and general-purpose machinery requiring shaft support.

Country of Origin

This product is manufactured in Italy, as indicated on the casting.

CO2 Impact

By choosing this reused New Old Stock (NOS) bearing unit, you are preventing the emission of approximately 2.2 kg of CO2 required for the production of a new one. This sustainable choice supports a circular economy and reduces industrial waste.

Availability

This item is in stock as New Old Stock (NOS) and is available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The unit comes pre-lubricated. It features a grease nipple for relubrication. Follow SKF guidelines based on operating speed, load, and environment, typically using a high-quality LGMT 2 or LGMT 3 grease.

Yes, the housing (SY 506 M) and the bearing insert (YAR 206-2F) can be sourced and replaced individually, making maintenance cost-effective.

The limiting speed for the SY30TF is approximately 5300 r/min. However, this can vary based on lubrication, load, and alignment. Always consult the SKF technical datasheet for your specific application conditions.
