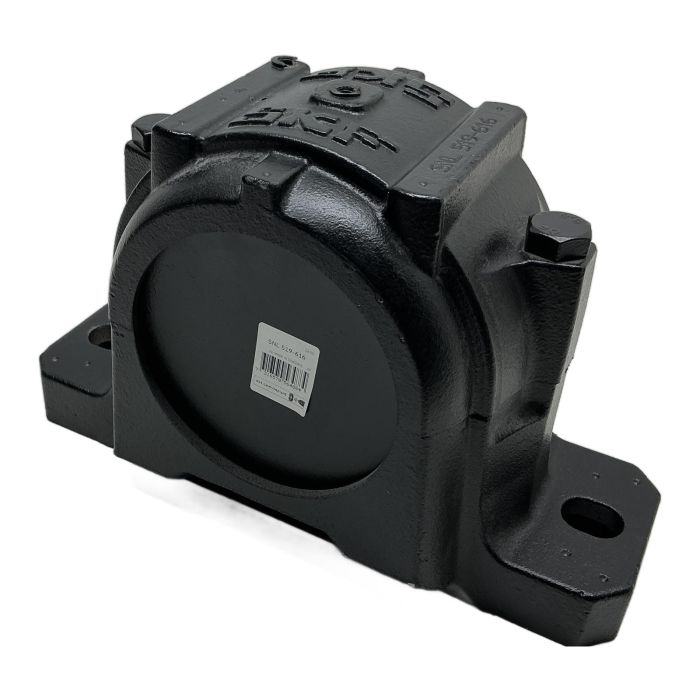

SKF SNL 519-616 Split Plummer Block Housing

Description

The SKF SNL 519-616 is a high-performance split plummer block housing designed for durability and ease of use. Its two-piece construction simplifies the mounting and dismounting of pre-assembled shafts. Engineered for use with various bearing types, it provides a versatile and reliable solution for rotating machinery in industries such as mining, pulp and paper, and manufacturing. The robust cast iron construction ensures excellent heat dissipation and rigidity, contributing to extended bearing service life.

Specifications

• Manufacturer: SKF
• Part Number: SNL 519-616
• Housing Series: SNL 500-600
• Compatible Shaft Diameter: 85 mm
• Compatible Bearing (example): 22219 E(K) on H319 Adapter Sleeve
• Material: Cast Iron
• Mounting Holes: 2x Slotted Holes
• Sealing Solution: Designed for various standard SKF seals (e.g. TSN L)

Label Info

• Model: SNL 519-616
• EAN: 7316570564884

Application

This housing is ideal for supporting rotating shafts in equipment such as conveyors, industrial fans, and crushers where reliability and simplified maintenance are critical.

Country of Origin

Made in Sweden.

CO2 Impact

Choosing this reused component prevents the emission of approximately 30 kg of CO2, which is equivalent to the savings from not manufacturing a new 15 kg cast iron part.

Availability

In stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What type of bearing is compatible with the SNL 519-616 housing?
Answer:

The SNL 519-616 housing is designed for several bearing types, including self-aligning ball bearings (12, 22 series), spherical roller bearings (222, 232 series), and CARB toroidal roller bearings (C 22 series). The most common combination is a 22219 series spherical roller bearing on an H319 adapter sleeve for an 85 mm shaft.

Question?
What is the recommended lubrication method for a bearing in this housing?
Answer:

This housing is suitable for both grease and oil lubrication. It features an integrated grease nipple hole for easy relubrication. The choice between grease and oil depends on the operating speed, load, and temperature of the application.

Question?
Can this SNL housing be directly replaced with the newer SE series housing?
Answer:

Yes, the SKF SE 519-616 is the modern replacement and is designed to be dimensionally interchangeable with the SNL 519-616. It offers the same critical dimensions (footprint, shaft height) for a seamless drop-in replacement while providing enhanced features.
