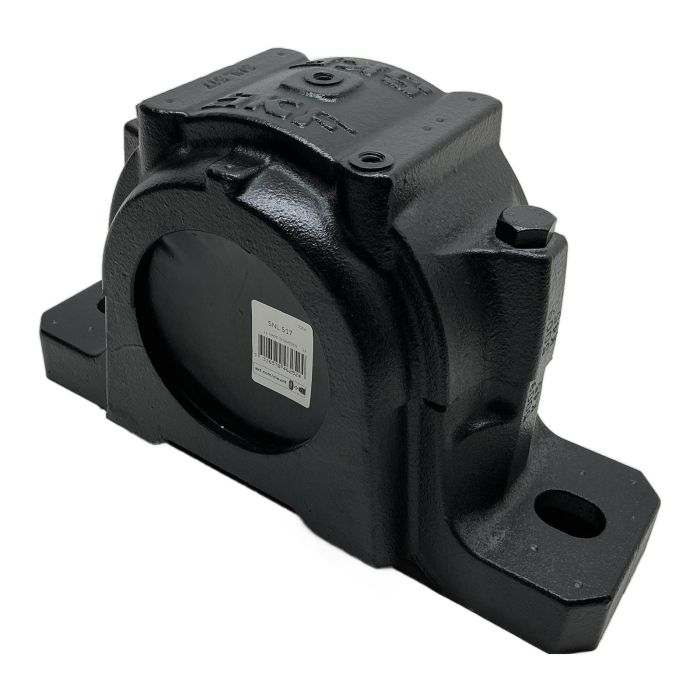

SKF SNL 517 Plummer Block Housing

Description

The SKF SNL 517 is a split plummer block housing from the renowned SNL series, engineered for reliability and simplified mounting and maintenance. Its robust design is suitable for a wide range of industrial applications, providing a stable and secure housing for various bearing types. This housing is designed to accommodate bearings on an adapter sleeve or with a cylindrical bore, offering flexibility in shaft arrangements.

Specifications

• Manufacturer: SKF
• Type: SNL Series Plummer Block Housing
• Model: SNL 517
• Housing Material: Cast Iron
• For Shaft Diameter: 75 mm (with H 317 adapter sleeve)
• Bolt Holes: Two attachment bolt holes
• Relubrication Feature: Yes, includes grease nipple

Label Info

• Model: SNL 517
• EAN: 7316578462524

Application

The SNL 517 is commonly used in industrial machinery such as conveyor systems, fans and blowers, paper machines, and mining equipment where reliable shaft support is critical.

Country of Origin

This product is Made in Sweden, as indicated on the product label.

CO2 Impact

Opting for this pre-owned component avoids the emission of approximately 17.0 kg of CO2, which is equivalent to driving a car for 85 km. This is a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The SNL 517 housing is versatile and can accommodate several bearing types on a 75mm shaft with an H 317 adapter sleeve, including spherical roller bearings (22217 EK), self-aligning ball bearings (1217 EK), and CARB toroidal roller bearings (C 2217 K).

The SNL 517 is designed for various sealing solutions depending on the application. Common choices include four-lip seals (TSN ... L) for standard conditions or heavy-duty Taconite seals (TSN ... ND) for highly contaminated environments. Always select a seal appropriate for your operating speed and contamination levels.

Yes, the SNL 517 housing features a grease nipple for easy re-lubrication. The frequency of re-lubrication depends on the bearing type, speed, load, and operating environment. Refer to the SKF maintenance guidelines for specific re-greasing intervals to ensure maximum bearing service life.
