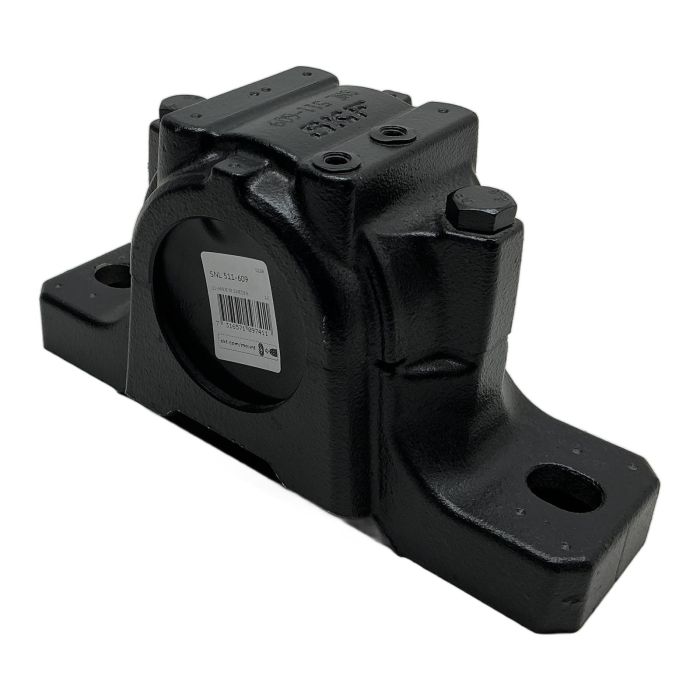

SKF SNL 511-609 Split Plummer Block Housing

Description

The SKF SNL 511-609 is a high-performance split plummer block housing designed for a wide range of industrial applications. Its robust cast iron construction ensures high rigidity and operational reliability. This housing facilitates easy mounting and dismounting of pre-assembled shafts and is engineered for optimal bearing performance and service life.

Specifications

• Manufacturer: SKF
• Type: SNL 511-609
• Housing Material: Cast Iron
• For Shaft Diameter (Adapter Sleeve): 50 mm
• For Shaft Diameter (Cylindrical Bore): 55 mm
• Compatible Bearings: 1211 K, 2211 K, 22211 EK, 23011 CCK/W33
• Mounting: Two-bolt base

Label Info

• Model: SNL 511-609
• EAN: 7316571097411

Application

This plummer block housing is ideal for use in industrial fans, conveyor systems, paper processing machines, and general-purpose machinery requiring reliable shaft support.

Country of Origin

Made in Sweden.

CO2 Impact

Choosing this component saves approximately 10.4 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial operation.

Availability

In stock and available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The housing accommodates several bearing types, including self-aligning ball bearings (e.g., 1211 K), spherical roller bearings (e.g., 2211 K, 22211 EK), and CARB toroidal roller bearings on an adapter sleeve for a 50mm shaft.

The SNL 511-609 housing is suitable for both grease and oil lubrication. It features provisions for a grease nipple for easy re-lubrication. The choice of lubricant and interval depends on the operating conditions like speed, load, and temperature.

Yes, the SKF SE 511-609 is designed as a dimensional equivalent and an upgrade to the SNL 511-609. While key dimensions are the same for interchangeability, the SE series offers enhanced features for performance and durability.
