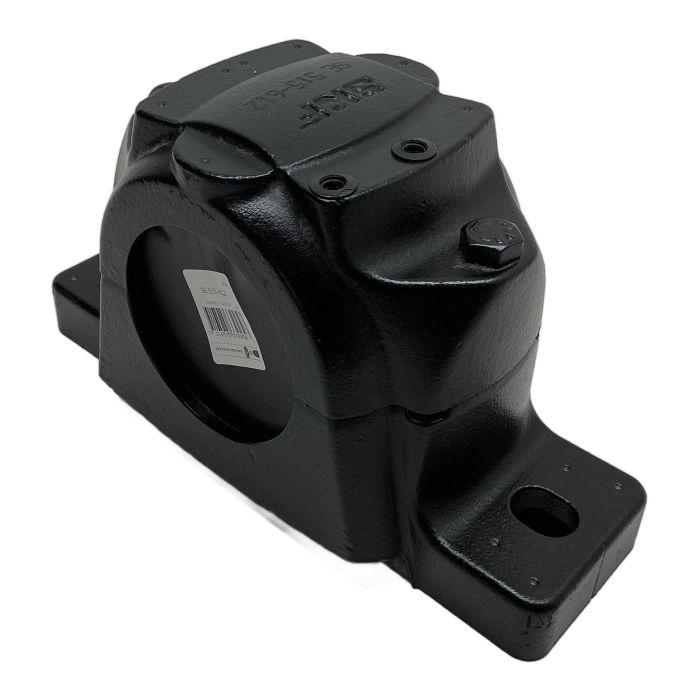

SKF SE 515-612 Split Plummer Block Housing

Description

The SKF SE 515-612 is a high-quality split plummer block housing designed for reliability and long service life in demanding industrial environments. Constructed from robust cast iron, it provides excellent stability and heat dissipation. The split design simplifies the installation, inspection, and maintenance of the incorporated bearings, making it a practical choice for a wide range of machinery.

Specifications

• Manufacturer: SKF
• Type: Split Plummer Block Housing
• Model: SE 515-612
• Material: Cast Iron
• Housing Series: SE
• Compatible Bearings: 22215 series (for 75mm shaft), 1215 series
• Compatible Adapter Sleeve: H 315 (for 65mm shaft)
• Mounting: Two-bolt base

Label Info

• Model: SE 515-612
• EAN: 7316575339258
• Origin: Made in Sweden

Application

These housings are ideal for use in various industrial applications including conveyor systems, industrial fans, paper machines, and mining equipment, where robust and reliable bearing arrangements are essential.

Country of Origin

This product is manufactured in Sweden by SKF.

CO2 Impact

Opting for a reconditioned component like this SKF housing prevents the emission of approximately 21.4 kg of CO2, which is the amount generated in the production of a new unit. This saving is equivalent to the CO2 absorbed by a mature tree over a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What bearing and sleeve combination is compatible with the SE 515-612 housing?

The SE 515-612 housing is designed for a spherical roller bearing of the 22215 series on a 75 mm shaft. Alternatively, it can be used with an H 315 adapter sleeve to accommodate a 65 mm shaft.

For the M16 cap bolts on an SE 515-612 housing, SKF recommends a tightening torque of approximately 190 Nm. Always refer to the official SKF maintenance handbook for precise values and procedures.

Yes, while primarily designed for grease lubrication, the SE series housings can be modified for oil lubrication. This may require additional seals and accessories. Consult SKF documentation for the correct conversion procedure.
