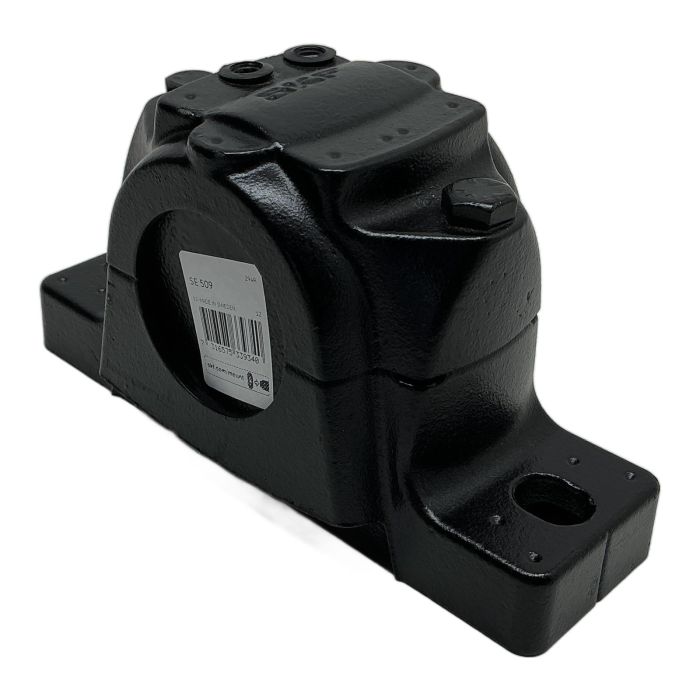

SKF SE 509 Plummer Block Housing

Description

The SKF SE 509 is a robust and reliable split plummer block housing, engineered for demanding industrial environments. Constructed from high-grade cast iron, it provides excellent stability and heat dissipation for the enclosed bearing. Its split design simplifies the process of mounting, inspecting, and maintaining bearings, reducing downtime. This housing is part of the proven SKF SE series, known for its quality and durability.

Specifications

• Manufacturer: SKF
• Type: Plummer Block Housing (Split Type)
• Model: SE 509
• Suitable Shaft Diameter: 40 mm (with compatible bearing and adapter sleeve)
• Material: Grey Cast Iron
• Mounting: 2-bolt base mounting

Label Info

• Model: SE 509
• EAN: 7316575339340

Application

The SKF SE 509 is ideal for use in a wide range of applications, including conveyor systems, fans and blowers, agricultural machinery, and general industrial equipment where reliable shaft support is critical.

Country of Origin

Made in Sweden.

CO2 Impact

By choosing this pre-owned unit, you are preventing the emission of approximately 6.4 kg of CO2, which would have been generated during the production of a new one. This is a smart choice for both your budget and the environment.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

It is designed for self-aligning ball bearings or spherical roller bearings with a tapered bore, typically mounted using an adapter sleeve (e.g., bearing 22209 EK with sleeve H 309).

The housing is designed for grease lubrication and typically includes ports for installing grease nipples, allowing for easy relubrication to ensure optimal performance and bearing life.

Proper torque on the cap bolts is critical for correct bearing clearance. The specific torque values are provided in the official SKF technical datasheet for the SE 509 and must be followed precisely during installation.
