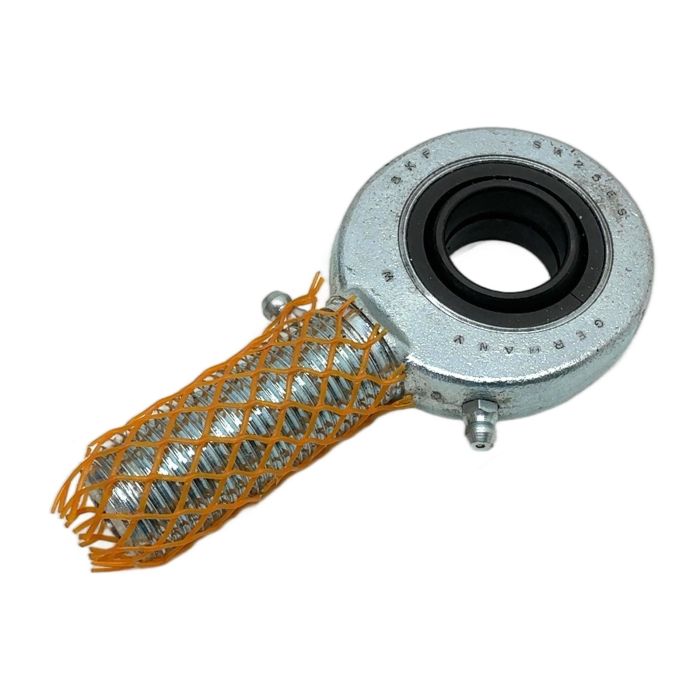

SKF SA 25 ES Rod End with Male Thread

Description

The SKF SA 25 ES is a high-performance, maintenance-required rod end featuring a standard male M24x2 thread. It incorporates a steel-on-steel spherical plain bearing, making it suitable for applications with heavy, constant direction loads. The robust construction and relubrication facilities via grease nipples ensure reliability and a long operational life in demanding industrial environments.

Specifications

• Manufacturer: SKF
• Type: SA 25 ES
• Bore Diameter (d): 25 mm
• Thread (d2): M24x2 (Right-hand, Male)
• Sliding Contact Surface: Steel/Steel
• Sealing: None
• Relubrication Feature: Yes, with grease nipples
• Basic Dynamic Load Rating: 34.5 kN
• Basic Static Load Rating: 51 kN

Label Info

• Brand: SKF
• Model: SA 25 ES
• Origin: GERMANY

Application

This rod end is commonly used in mechanical linkages, hydraulic cylinder pivots, steering systems, and other articulating joints across various industries, including agriculture, construction machinery, and industrial automation.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reused component, you avoid the emission of approximately 1.3 kg of CO2, which is the equivalent of the energy needed to produce a brand new part. This choice supports a more sustainable industrial practice.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main difference between an SA .. ES and a SI .. ES series rod end?

The main difference is the thread type. The SA series, like this SA 25 ES, has a male or external thread on the shank. The SI series has a female or internal thread. Both typically use a steel-on-steel spherical plain bearing.

Yes, it does. The 'ES' designation indicates a steel-on-steel sliding contact surface which requires periodic relubrication. This unit is equipped with grease nipples to facilitate this maintenance, ensuring optimal performance and service life.

The SKF SA 25 ES has a standard right-hand metric thread of M24x2. The '24' refers to the nominal diameter in millimeters, and the '2' refers to the thread pitch. Left-hand thread versions are typically designated with an 'L', for example, SAL 25 ES.
